Gefen DisplayPort Fiber Optic (Pigtail Modules) - 1 Input Device - 1 Output Device - 3300 ft Range - 2 x SC Ports - WQXGA - 2560 x 1600 - Optical Fiber EXT-DP-CP-FM10

Gefen DisplayPort Fiber Optic (Pigtail Modules) - 1 Input Device - 1 Output Device - 3300 ft Range - 2 x SC Ports - WQXGA - 2560 x 1600 - Optical Fiber

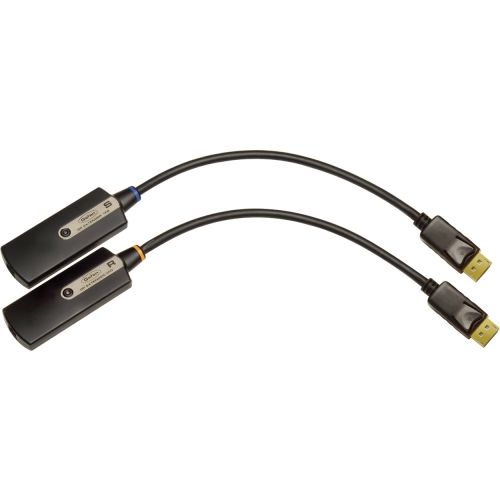

Pigtail module DisplayPort extension using a single-strand multimode fiber optic cable with DPCP support The DisplayPort fiber optic pigtail module extender with DPCP support extends a DisplayPort up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable with resolutions up to 2560 x 1600 (WQXGA). Optical signal transmission provides galvanic isolation and immunity to electromagnetic interference compared to similar copper based extension modules. The pigtail design of the Sender and Receiver modules relieves stress and clutter on the source and display connector panels. Their compact design makes them ideal for fitting neatly behind equipment for a clean installation, making it a great way to easily extend DisplayPort.

Warning: This product can expose you to chemicals including Vinyl Chloride, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 3300 ft
Graphics Modes: WQXGA
Maximum Video Resolution: 2560 x 1600
Number of SC Ports: 2
Media Type Supported: Optical Fiber
Input Voltage: 5 V DC
Transmitter Height: 0.47"
Transmitter Width: 1.50"
Transmitter Depth: 3.51"
Package Contents: 1 x DP Extender 1FO(Sender Pigtail) (EXT-DP-CP-FM10S), 1 x DP Extender 1FO(Receiver Pigtail) (EXT-DP-CP-FM10R), 2 x 5V DC Power Supplies (EXT-PS52AIP-1.3), 1 x Quick-Start Guide (QSG-DP-CP-FM10)
