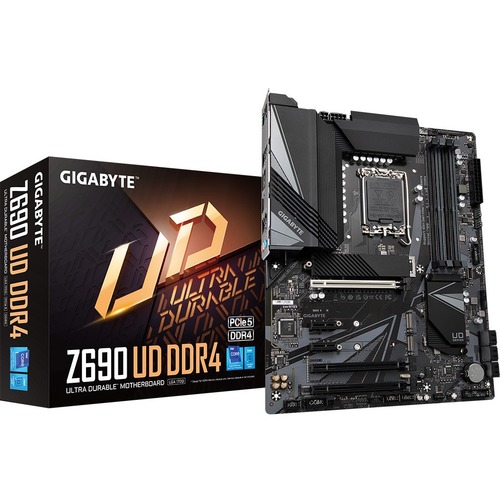

Gigabyte Z690 UD DDR4 Gaming Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory

Gigabyte Z690 UD DDR4 Gaming Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces

Intel® Z690 Motherboard with 16+1+2 Twin Hybrid Phases Digital Power Design, PCIe 5.0 Design, Ultra Performance VRM Heatsinks, 3 x PCIe 4.0 M.2 with Thermal Guard, 2.5 GbE LAN, Rear USB 3.2 Gen 2x2 Type-C®, Q-Flash Plus Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs 16*+1+2 Twin Hybrid Phases Digital Power Design with 60A Power Stage and Tantalum Polymer Capacitor Ultra Performance VRM Heatsinks Fast 2.5 GbE LAN with Bandwidth Management 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guard SuperSpeed USB 3.2 Gen 2x2 TYPE-C® delivers up to 20Gb/s transfer speeds RGB FUSION 2.0 supports Addressable LED & RGB LED Strips Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card UNPARALLELED PERFORMANCE With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIAGBYTE Z690 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming. ADVANCED THERMAL SOLUTION Z690 UD DDR4 uses high performance Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z690
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Celeron, Core i3, Core i5, Core i7, Core i9, Pentium Gold
Multi GPU Supported: CrossFire
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 5333 MHz, 5133 MHz, 5000 MHz, 4933 MHz, 4800 MHz, 4700 MHz, 4600 MHz, 4500 MHz, 4400 MHz, 4300 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3800 MHz, 3733 MHz, 3666 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3300 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Total Number of PCI Express Slots: 5
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 10
Number of USB 2.0 Ports: 4
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 4
Number of USB 3.2 Gen 2 Type-A Ports: 1
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 3
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

Z690 UD DDR4 (rev. 1.0) Gaming Desktop Motherboard, Bundled Software
Norton Internet Security (OEM version), Realtek Gaming LAN Bandwidth Control Utility

Brand Compatibility: Intel
Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS, China RoHS
Country of Origin: China
