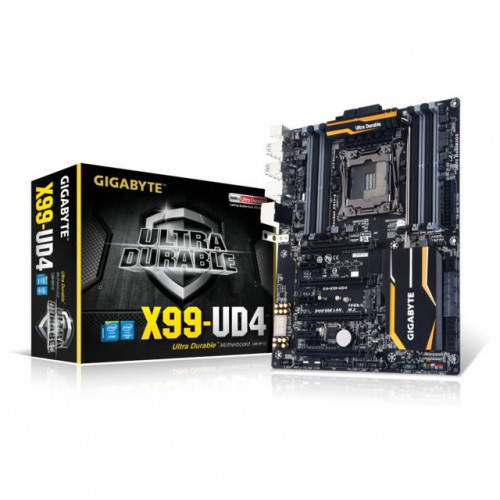

GIGABYTE GA-X99-UD4 LGA2011-v3/ Intel X99/ DDR4/ 4-Way CrossFireX & SLI/ SATA3&USB3.0/ M.2&SATA Express/ A&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: GA-X99-UD4
• CPU: LGA 2011-v3
  • Support Intel Core i7 Processors
• Chipset: Intel X99
• Memory: 8x DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Quad-Channel, Non-ECC, Max Capacity up to 64GB
• Slots: 4x PCI-Express 3.0 x16 Slots (two run at x8), 3x PCI-Express 2.0 x1 Slots, 1x M.2 Slot (M.2 Wifi)
• Multi-Graphics: Support for 4-Way/ 3-Way/ 2-Way AMD CrossFire & NVIDIA SLI Technology
• Storage:
  • SATA: 10x SATA3 Ports, Six Support RAID 0, 1, 5, 10, Four Support IDE and AHCI modes only; 1x SATA Express Port
  • M.2: 1x M.2 Port
• Audio: Realtek ALC1150 7.1-Channel High Definition Audio CODEC, Support for S/PDIF Out
• LAN: Integrated Intel Gigabit Ethernet Controller
• Ports: 8x USB 3.0/2.0 Ports (6 rear, 2 via header), 8x USB 2.0/1.1 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 24.4 cm
