Harman International Industries AMX Metreau 13-Button Ethernet Keypad Ramp Kit FG565-12-BL-00

AMX Metreau 13-Button Ethernet Keypad Ramp Kit

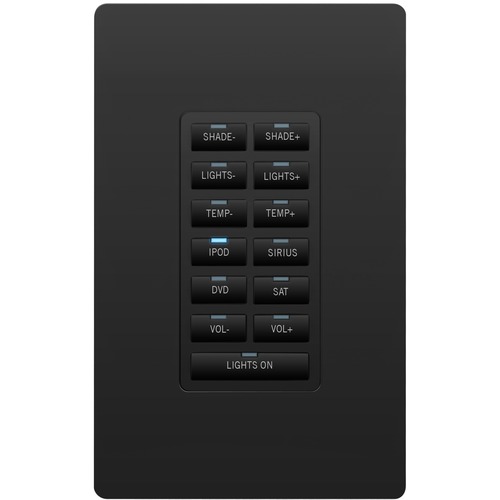

The HPX-U400-R-MET-13E module is a Metreau 13-Button Ethernet Keypad in a ramped carrier that allows it to be installed into the HydraPort® chassis at an angle to improve usability. Common Applications Ideal for boardrooms, conference rooms, meeting rooms or auditoriums where equipment is permanently installed in the room and users must connect to that equipment from a conference table or lectern.

Technical Specifications:
Additional Information:

POWER

PoE: PoE (Power over Ethernet), 802.3af, class 0, Power Connector: (1) RJ-45 Ethernet Connector, 10/100

POWER SUPPLY

External, Required: POE injector or switch, conforming to the 802.3af standard including AMX's PS-POE-AF-TC (FG423-83), not included

ETHERNET

Ethernet Connection: (1) RJ-45 Ethernet Connector, 10/100

ENVIRONMENTAL

Temperature (Operating): 32° to 104° F (0° to 40° C), Humidity (Relative): 5% to 85%, non-condensing, Note: Intended for indoor use only

FRONT PANEL COMPONENTS

Pushbuttons available in a variety of field replaceable pre-printed buttons, Blue LEDs indicate activity

REAR PANEL COMPONENTS

(1) RJ-45 Ethernet Connector, 10/100, (2) 8-pin, 0.100" (2.54 mm) IDC-type male header

Application/Usage: Boardroom, Conference Room, Meeting Room, Auditorium
Compatibility: AMX HydraPort Chassis
