HighPoint rDrive 6628AM - Thunderbolt 3 40Gb/s Hardware RAID Storage for Mac Systems - 8 x HDD Supported - 8 x HDD Installed - 80 TB Installed HDD Capacity - RAID Supported 0, 1, 5, 6, 10, 50, JBOD - 8 x Total Bays - Tower RD6628AM-80T

HighPoint rDrive 6628AM - Thunderbolt 3 40Gb/s Hardware RAID Storage for Mac Systems - 8 x HDD Supported - 8 x HDD Installed - 80 TB Installed HDD Capacity - RAID Supported 0, 1, 5, 6, 10, 50, JBOD - 8 x Total Bays - Tower

HighPoint rDrive 6628AM Series Thunderbolt™ 3 Hardware RAID Storage The rDrive 6628AM Series employs our industry-proven Hardware RAID stack to deliver professional grade, pre-configured Thunderbolt™ 3 40Gb/s RAID storage for today''s most demanding media applications, in an affordable, easy to install solution. HighPoint Hardware RAID Technology was designed specifically for I/O intensive work environments which require uncompromised transfer performance and superior data security. The integrated hardware RAID engines and dedicated RAM completely offload all RAID calculations from the host platform to maximize sustained data throughput and reliability of the hosted storage configurations. The robust, compact tower form factor is available with 32 to 96TB of storage capacity, and can be easily connected to any Mac OS X 10.10 or later platform with Thunderbolt™ 3 capability. Integrated Hardware RAID Architecture The rDrive 6628AM was designed to accommodate storage applications that require maximum sustained transfer performance. Dedicated Hardware RAID engines and onboard cache allow the rDrive to work independently of the host platform, freeing up valuable system resources for other critical tasks, and ensures smooth, consistent data transfer. Each rDrive 6628AM is shipped with up to 96TB of pre-configured RAID 5, with optional support for hardware RAID 0, 1, 6, 10, 50 & JBOD. Tackle Multiple Applications, Simultaneously rDrive RAID storage delivers the bandwidth and storage capacity to handle multiple applications, simultaneously. The simple and intuitive rDrive Manager interface can be used to reorganize the 8 hard drives into a wide range of storage configurations. Each rDrive 6628AM can host up to 4 independent arrays, each of which can be assigned to a different task or application. Storage Expansion Ready Daisy-Chain capability allows customers to link as many as 6 independent rDrive 6628AM storage units using a single Thunderbolt™ 3 host port. The Online Capacity Expansion and RAID Migration allow customers to modify RAID configurations or expand existing storage while avoiding complicated, time consuming backup and restoration procedures. HighPoint DV Mode for Media Streaming Performance rDrive 6628AM storage benefits from our industry proven DV Mode technology. DV Mode employs an innovative caching algorithm designed specifically for the rigors of video post-production, and manages the flow of large data blocks and write-back caching to minimize latency and ensure consistent, sustained high-performance transfers for media-rich applications. Quick and Painless Installation Media Professionals in need of simple yet powerful RAID storage need look no further. HighPoint''s rDrive 6628AM series deliver up to 96TB of turn-key ready RAID 5 storage in an easy to install package. Each retail kit includes all necessary chassis hardware, cabling , storage and software. The robust, compact 8-Bay drive enclosure ships preloaded with 8 hard drives configured as a RAID 5 array and can be easily attached to any Mac platform.

Technical Specifications:
Number of Hard Drives Supported: 8
Number of Hard Drives Installed: 8
Total Hard Drive Capacity Installed: 80 TB
Number of Total Expansion Bays: 8
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, JBOD
Host Interface: Thunderbolt 3
Maximum Power Supply Wattage: 250 W
Height: 13"
Width: 5.7"
Depth: 10.1"
Form Factor: Tower
Weight (Approximate): 23 lb

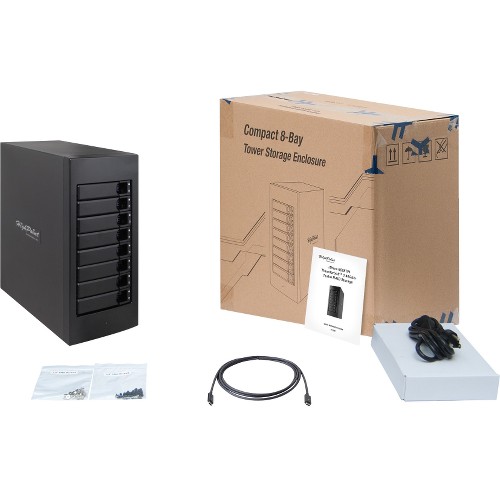

Package Contents:

rDrive 6628AM - Thunderbolt 3 40Gb/s Hardware RAID Storage for Mac Systems, 8 x Removable Disk Modules, 1 x 40Gb/s Thunderbolt 3 Cable, 1 x UL Power Cord, 1 x Quick Installation Guide
