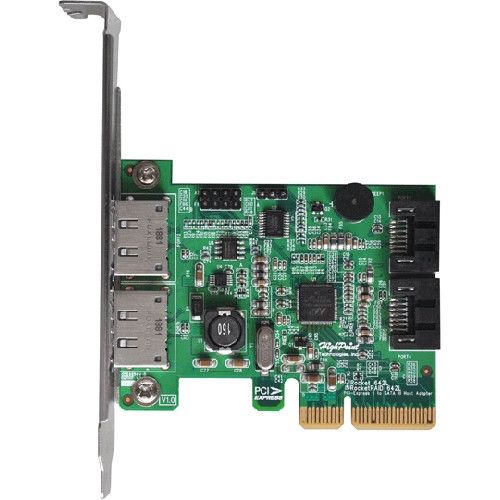

HighPoint RocketRAID 642L Serial ATA Controller - Serial ATA/600 - PCI Express 2.0 x4 - Plug-in Card - RAID Supported - 0, 1, 5, 10, JBOD RAID Level - 4 Total SATA Port(s) - 2 SATA Port(s) Internal - 2 SATA Port(s) External RR642L

HighPoint RocketRAID 642L Serial ATA Controller - Serial ATA/600 - PCI Express 2.0 x4 - Plug-in Card - RAID Supported - 0, 1, 5, 10, JBOD RAID Level - 4 Total SATA Port(s) - 2 SATA Port(s) Internal - 2 SATA Port(s) External

RocketRAID 600 series HBA''s are the ideal 6Gb/s SATA storage solution for any PC or Mac. Available with 2 to 4 SATA/eSATA ports in internal and external configurations, RocketRAID 600 series HBA''s are capable of supporting point-to-point and Port Multiplier based storage devices. The compact PCB design, available low-profile form factor and industry standard port connectors make any storage upgrade, integration or expansion project a snap.RocketRAID 600 HBA''s deliver HighPoint''s Industry-proven Hardware Assisted RAID technology, and a comprehensive RAID Management Suite. Customers can quickly and easily configure a wide-range of storage configurations, including RAID 0, 1, 5, 10 and JBOD arrays.HighPoint''s 2nd generation RocketRAID 600L series introduce a new Hybrid-Port configuration. The RocketRAID 642L HBA features both internal and external 6Gb/s SATA ports and is an ideal HBA platform for applications that require built-in storage expansion capabilities. The internal ports provide direct connections for up to 2 SATA hard drives and SSD''s, while the external ports are capable of supporting an additional 10 SATA devices when used in conjunction with Port-Multiplier capable storage enclosures.

Technical Specifications:
Host Interface: PCI Express 2.0 x4
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10, JBOD
Maximum Data Transfer Rate: 6
Total Number of SATA Ports: 4
Number of SATA Ports (Internal): 2
Number of SATA Ports (External): 2
Height: 2.6"
Width: 3.1"
Form Factor: Plug-in Card
Card Height: Low-profile
Weight (Approximate): 8 oz
Package Contents: RocketRAID 642L Serial ATA Controller, 2 x SATA Cables, Software CD, Low-Profile Bracket, Quick Installation Guide
Platform Supported: PC, Mac
Country of Origin: China
