Detail overview

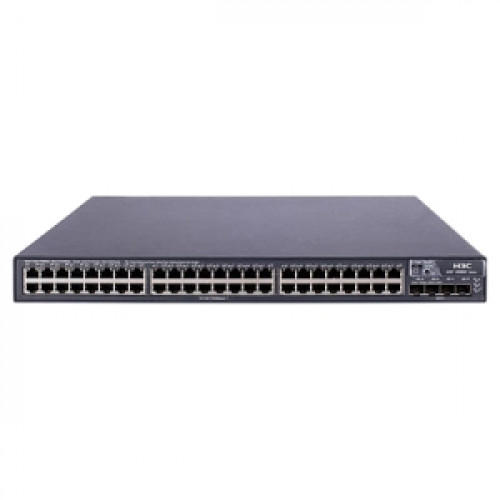

Hp - 5500-48g Ei Taa-compliant Switch With 2 Interface Slots (jg251a).
Key Features :
Device Type : Switch - 48 Ports - Managed - Stackable
Enclosure Type : Rack-mountable - 1u
Ports : 48 X 10/100/1000 + 4 X Shared Sfp
Performance : Routing/switching Capacity : 192 Gbps Throughput : 142.9 Mpps
Capacity : Routing Table Entries : 12000
Mac Address Table Size : 32k Entries
Jumbo Frame Support : Yes
Routing Protocol : Ospf, Bgp-4, Is-is, Rip-1, Rip-2, Igmpv2, Igmp, Vrrp, Ospfv2, Pim-sm, Pim-dm, Igmpv3, Ospfv3, Pim-ssm, Msdp, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Ripng, Mldv2, Mld
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Https, Cli
Encryption Algorithm : Ssl
Authentication Method : Secure Shell (ssh), Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Routing, Layer 3 Switching, Layer 2 Switching, Dhcp Support, Power Over Ethernet (poe), Bootp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Diffserv Support, Ipv6 Support, Sflow, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Jumbo Frames Support, Mld Snooping, Poe+, Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Endpoint Admission Defense (ead), Stp Root Guard, Unicast Reverse Path Forwarding (urpf)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1ad, Ieee 802.1ab (lldp)
Ram : 256 Mb - Sdram
Flash Memory : 32 Mb
Expansion / Connectivity :
Interfaces : 48 X 10base-t/100base-tx/1000base-t - Rj-45 - Poe 1 X Console - Rj-45 - Management 4 X Sfp (mini-gbic)
Expansion Slot(s) : 2 (total) / 2 (free) X Expansion Slot
Installed Modules Qty (max) : 0 (installed) / 2 (max)
