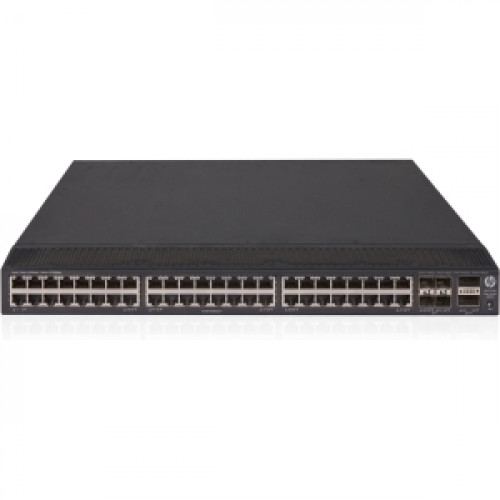

HP Flexfabric 5700-48g-4xg-2qsfp+ Switch 48 Ports Managed Rack-mountable JG894A

Detail overview

Hp Jg894a Flexfabric 5700-48g-4xg-2qsfp+ - Switch - 48 Ports - Managed - Rack-mountable.

Key Features :
device Type : Switch - 48 Ports - L3 - Managed
enclosure Type : Rack-mountable 1u
subtype : Gigabit Ethernet
ports : 48 X 10/100/1000 + 4 X 10 Gigabit Ethernet Sfp+ / 1 Gigabit Ethernet Sfp+ + 2 X 40 Gigabit Qsfp+ (uplink)
performance : Throughput: 250 Mpps ¦ Routing/switching Capacity: 336 Gbps
capacity : Ipv4 Routing Table Entries: 128 ¦ Ipv6 Routing Table Entries: 128 ¦ Virtual Interfaces (vlans): 4094
mac Address Table Size : 128k Entries
jumbo Frame Support : 10000 Bytes
routing Protocol : Rip-1, Rip-2, Igmpv2, Igmp, Igmpv3, Static Ipv4 Routing, Static Ipv6 Routing
remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Ssh, Cli
authentication Method : Secure Shell (ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2)
features : Flow Control, Dhcp Support, Arp Support, Igmp Snooping, Port Mirroring, Weighted Round Robin (wrr) Queuing, Sntp Support, Weighted Fair Queuing (wfq), Weighted Random Early Detection (wred), Sflow, Pim Snooping, Multiple Spanning Tree Protocol (mstp) Support, Data Center Bridging Exchange (dcbx) Support, Priority-based Flow Control, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Lldp Support, Data Center Bridging (dcb), Management Information Base (mib), Ntp Time Synchronization, Class Of Service (cos), Strict Priority (sp), Intelligent Resilient Framework Technology (irf), Fcoe Support
compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.1qbb, Ieee 802.3ag
ram : 2 Gb Sdram
flash Memory : 512 Mb

Expansion / Connectivity :
interfaces :
48 X 1000base-t - Rj-45
4 X Gigabit / 10gbit Lan - Sfp+
2 X 40gbit Lan - Qsfp+ - Uplink
1 X Serial (console) - Rj-45 - Management
1 X Usb 2.0 - Management
1 X - Rj-45 - Management

Power :
power Device : Internal Power Supply
installed Qty : 0 (installed) / 2 (max)
power Redundancy : Optional
power Redundancy Scheme : 1+1 (with Optional Power Supply)
power Consumption Operational : 175 Watt
