Detail overview

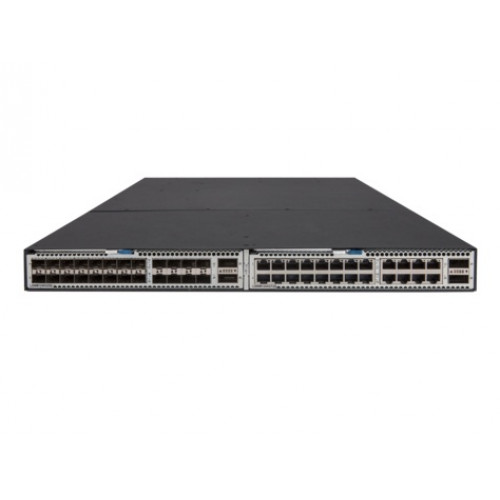

Hp - Flexfabric 5930-2slot+2qsfp+ - Switch - 2 Ports - Managed - Rack-mountable (jh178-61001) :
Key Features :
Device Type : Switch - 2 Ports - L3 - Managed
Enclosure Type : Rack-mountable - 1u
Subtype : 40 Gigabit Ethernet
Ports : 2 X 40 Gigabit Qsfp+
Performance : Latency (64-byte Packets) : 1 Μs ¦ Throughput : 1071 Mpps ¦ Routing/switching Capacity : 1.44 Tbps
Capacity : Virtual Interfaces (vlans) : 4096 ¦ Ipv4 Routing Table Entries : 120000 ¦ Ipv6 Routing Table Entries : 60000
Mac Address Table Size : 288k Entries
Jumbo Frame Support : 10000 Bytes
Routing Protocol : Ospf, Rip, Bgp-4, Is-is, Rip-2, Bgp, Igmp, Vrrp, Ospfv3, Static Ipv6 Routing, Ripng, Mpls, Bidirectional Forwarding Detection (bfd)
Remote Management Protocol : Snmp 1, Telnet, Snmp 3, Snmp 2c, Ssh
Authentication Method : Secure Shell (ssh), Radius, Tacacs, Tacacs+, Secure Shell V.2 (ssh2)
Features : Flow Control, Dhcp Support, Arp Support, Port Mirroring, Weighted Round Robin (wrr) Queuing, Sntp Support, Weighted Fair Queuing (wfq), Sflow, Virtual Route Redundancy Protocol (vrrp) Support, Multiple Spanning Tree Protocol (mstp) Support, Data Center Bridging Exchange (dcbx) Support, Access Control List (acl) Support, Quality Of Service (qos), Committed Access Rate (car), Device Link Detection Protocol (dldp) Support, Equal-cost Multipath (ecmp), Data Center Bridging (dcb), Transparent (n_port Id Virtualization - Npiv) Mode Support, Registered State Change Notification (rscn) Support, Name Server-based Zoning, Strict Priority (sp), Edge Virtual Bridging (evb), Intelligent Resilient Framework Technology (irf), Redundant Fans, Reverse Airflow Support, 12.2mb Packet Buffer, Precision Time Protocol (ptp), Fcoe Support, Rdma Over Converged Ethernet (roce), Virtual Ethernet Port Aggregator (vepa), In-service Software Upgrade (issu), Fcoe Initialization Protocol (fip), Deficit Round Robin (drr), Vxlan Tunnel Endpoints (vtep) Support
Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.3ah, Ieee 802.1ag, Ieee 802.1ab (lldp), Ieee 802.1qbb, Ieee 802.1qaz, Ieee 802.1aq, Ieee 802.3ag
Ram : 4 Gb - Sdram
Flash Memory : 1 Gb
Expansion / Connectivity :
Interfaces : 2 X 40gbit Lan - Qsfp+ ¦ 1 X Serial (console) - Rj-45 ¦ 1 X Management - Rj-45 ¦ 1 X Usb 2.0 - Type A
Expansion Slots : 2 (total) / 2 (free) X Expansion Slot
Installed Modules Qty (max) : 0 (installed) / 2 (max)
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 0 (installed) / 2 (max)
Power Redundancy : Yes
