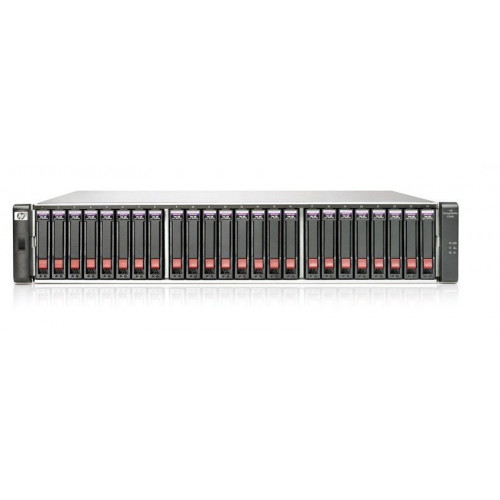

HP Modular Smart Array P2000 G3 Fc Dual Controller Sff Modular Smart Array System Hard Drive Array 24-bay 0 AP846B

Detail overview

Hp - Modular Smart Array P2000 G3 Fc Dual Controller Sff Modular Smart Array System Hard Drive Array - 24-bay - 0

General:

device Type: Hard Drive Array
enclosure Type: Rack-mountable - 2u

width: 17.6 In
depth: 20.3 In
height: 3.5 In

Chassis:

installed Devices / Modules Qty: 0
supported Devices / Modules Qty: 24
supported Drives: Serial Ata-300 / Sas 2

Storage:

external Interface: 8gb Fibre Channel
maximum Luns: 512

Storage Controller:

type: 2 X Raid ( 8gb Fibre Channel )
controller Interface Type: Serial Ata-300 / Sas 2.0
data Transfer Rate: 600 Mbps
cache / Buffer Size ( Max ): 2 Gb
raid Level: Raid 0, Raid 1, Raid 3, Raid 5, Raid 6, Raid 10, Raid 50

Hard Drive:

type: Hot-swap - Plug-in Module
capacity: 0

Expansion / Connectivity:

expansion Bays: 24 (total) / 24 (free) X Hot-swap - 2.5 Sff
interfaces: 2 X Serial Attached Scsi 2 - 26 Pin 4x Shielded Mini Multilane Sas (sff-8088) 2 X Management 2 X Management - Rj-45 4 X 8gb Fibre Channel

System Requirements:

os Required: Hp-ux, Red Hat Linux, Suse Linux Enterprise Server, Hp Openvms, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Oracle Solaris 10, Microsoft Windows Server 2003 (32/64-bits) Sp2, Microsoft Windows Server 2003 (32/64-bits) Sp1

Power:

power Device: 2 X Power Supply - Hot-plug - Plug-in Module
max Supported: Qty 2
installed Quantity: 2
power Redundancy: Yes
power Redundancy Scheme: 1+1
voltage Required: Ac 120/230 V ( 50/60 Hz )
