Detail overview

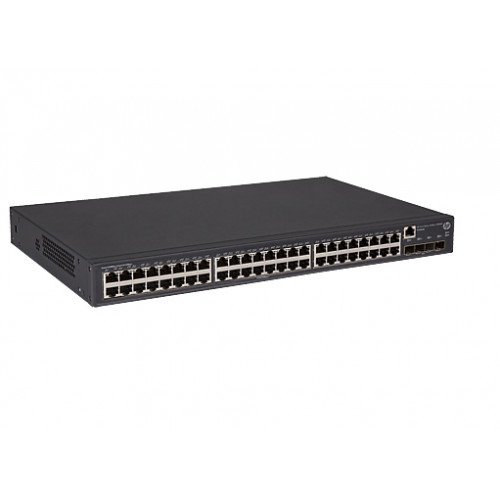

Hpe - 5130-48g-4sfp+ Ei - Switch - 48 Ports - Managed Switch (jg934a).
Key Features :
Device Type : Switch - 48 Ports - L3 - Managed - Stackable
Enclosure Type : Rack-mountable - 1u
Subtype : Gigabit Ethernet
Ports : 48 X 10/100/1000 + 4 X 10 Gigabit Ethernet / 1 Gigabit Ethernet Sfp+
Performance : Throughput : 130.9 Mpps, Routing/switching Capacity : 176 Gbps
Capacity : Ipv4 Routing Table Entries : 512, Ipv6 Routing Table Entries : 256
Mac Address Table Size : 16384 Entries
Jumbo Frame Support : 9216 Bytes
Routing Protocol : Static Ipv4 Routing, Static Ipv6 Routing
Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3, Snmp 2c, Http, Https, Cli
encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Hwtacacs
Features : Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Weighted Round Robin (wrr) Queuing, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sflow, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Mld Snooping, Per-vlan Spanning Tree Plus (pvst+), Device Link Detection Protocol (dldp) Support, Rapid Ring Protection Protocol (rrpp) Support, Endpoint Admission Defense (ead), Stp Root Guard, Lldp Support, Dhcp Relay, Port Security, Dynamic Arp Protection, Dhcp Protection, Strict Priority Queuing (spq), Port Isolation, Tagged Vlan, Generic Attribute Registration Protocol (garp), Intelligent Resilient Framework Technology (irf)
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3i, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1ad, Ieee 802.3ah, Ieee 802.1ab (lldp)
Ram : 1 Gb - Sdram
Flash Memory : 128 Mb
Expansion / Connectivity :
Interfaces : 48 X 1000base-t - Rj-45 4 X Gigabit / 10gbit Lan - Sfp+ 1 X Console - Rj-45 - Management
Power :
Power Device : Internal Power Supply
Voltage Required : Ac 120/230 V
Power Consumption Operational : 45 Watt
