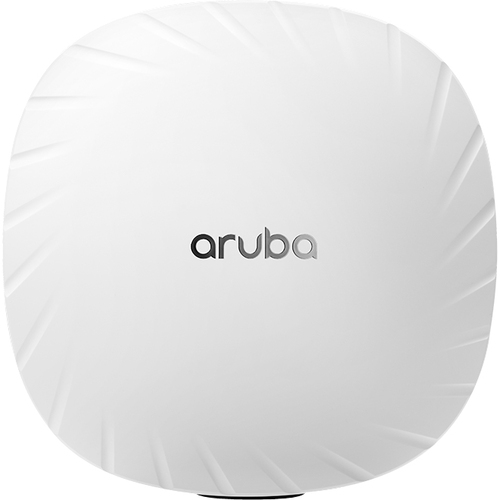

HPE Aruba AP-535 802.11ax 3.55 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - 5 Gigabit Ethernet - Bluetooth 5 - Ceiling Mountable - TAA Compliance JZ335A

Aruba AP-535 802.11ax 3.55 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - 5 Gigabit Ethernet - Bluetooth 5 - Ceiling Mountable - TAA Compliance

Very high Wi-Fi 6 (802.11ax) performance with dual radios and Green AP energy efficiencyAruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a maximum aggregate data rate of 3.55 Gbps (HE80/HE40), the 530 Series deliver the speed and reliability needed for any enterprise.INCREDIBLE EFFICIENCYThe 530 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.Features include Orthogonal frequency-division multiple access (OFDMA), bi-directional multi-user MIMO and cellular optimization. With up to 4 spatial streams (4SS) and 160MHz channel bandwidth (VHT160), the 530 Series provides groundbreaking wireless capabilities for any enterprise.Advantages of OFDMAThis capability allows Aruba''s APs to handle multiple Wi-Fi 6 capable clients on each channel simultaneously, regardless of device or traffic type. Channel utilization is optimized by handling each transaction via smaller sub-carriers or resource units (RUs), which means that clients are sharing a channel and not competing for airtime and bandwidth.Aruba Air SliceTM for Extended Application AssuranceInitially, APs in controller-less mode (Instant) can provide SLA-grade performance by allocating radio resources, such as time, frequency, and spatial streams, to specific traffic types. By combining Aruba''s Policy Enforcement Firewall (PEF) and Layer 7 deep packet inspection (DPI) to identify user roles and applications, the APs will dynamically allocate the bandwidth needed. Non-Wi-Fi 6 clients can also benefit.Air SliceTM for APs uses Aruba Central for management. Controller-based APs will be supported in a future software release.Bi-directional Multi-user MIMO (MU-MIMO)Similar to downlink MU-MIMO in Wi-Fi 5 (802.11ac Wave 2), the 530 Series can simultaneously connect clients use downlink - and now - uplink spatial streams. The added benefit is the ability to multiply the number of clients that can now send traffic, thus optimizing client-to-AP spatial stream diversity.Wi-Fi 6 and MU-MIMO aware client optimizationAruba''s patented AI-powered ClientMatch technology eliminates sticky client issues by placing Wi-Fi 6 capable devices on the best available AP. Session metrics are used to steer mobile devices to the best AP based on available bandwidth, types of applications being used and traffic type - even as users roam.Aruba Advanced Cellular Coexistence (ACC)This feature uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small cell or femtocell equipment.Intelligent Power Monitoring (IPM) Aruba APs continuously monitor and report hardware energy consumption. They can also be configured to enable or disable capabilities based on available PoE power - ideal when wired switches have exhausted their power budget.Green AP energy efficiencyAruba Wi-Fi 6 APs utilize analytics from NetInsight to automatically transition in and out of a sleep mode based on client density.

Technical Specifications:
Wireless LAN Standard: 802.11ax
Bluetooth Standard: Bluetooth 5
Frequency Band: 2.40 GHz, 5 GHz
Total Number of Antennas: 4
Number of Internal Antennas: 4
Wireless Transmission Speed: 3.55 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Ethernet Technology: 5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
USB: Yes
Form Factor: Ceiling Mountable
Height: 2.2"
Width: 9.4"
Depth: 9.4"
Weight (Approximate): 2.80 lb
