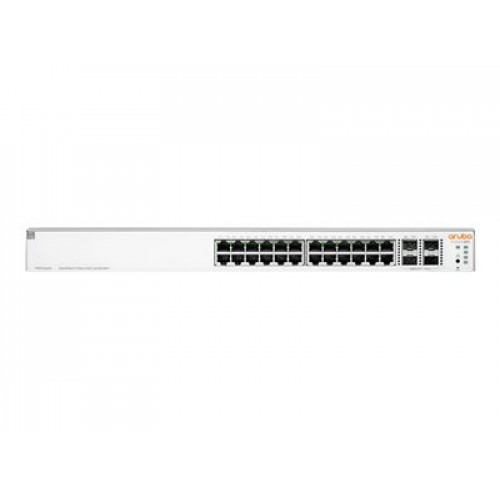

HPE Aruba Instant On 1930 24g Class4 Poe 4sfp/sfp+ 370w Switch Switch 28 Ports Managed Rack-mountable JL684A

HPE Aruba Instant On 1930 24g Class4 Poe 4sfp/sfp+ 370w Switch Switch 28 Ports Managed Rack-mountable JL684A
Brand: HP
Part Number: JL684A
MSRP: $601.99
Availability: 10 or more
Condition: New
Price: $501.12
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Hpe Jl684a Aruba Instant On 1930 24g Class4 Poe 4sfp/sfp+ 370w Switch - Switch - 28 Ports - Managed - Rack-mountable.

Key Features :

  • Device Type: Switch - 28 Ports - L3 - Managed
  • Enclosure Type: Rack-mountable 1u
  • Subtype: Gigabit Ethernet
  • Ports: 24 X 10/100/1000 (poe) + 4 X 1 Gigabit / 10 Gigabit Sfp+
  • Power Over Ethernet (poe): Poe
  • Poe Budget: 370 W
  • Performance:
  • Switching Capacity: 128 Gbps ¦ Throughput: 95.23 Mpps ¦ Latency (1 Gbps): 2.4 Μs ¦ Latency (10 Gbps): 1.3 Μs
  • Capacity: Link Aggregation Ports: 8 ¦ Ipv4 Routes (static): 32 ¦ Vlans Supported: 256 ¦ Access Control Entries (aces) Per Acl: 480 ¦ Packet Buffer
  • Size: 1.5 Mb
  • Mac Address Table Size: 16000 Entries
  • Jumbo Frame Support: 9216 Bytes
  • Routing Protocol: Static Ip Routing
  • Remote Management Protocol: Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius
  • Encryption Algorithm: Ssl
  • Authentication Method: Radius
  • Features: Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter, Poe Class 4
  • Compliant Standards: Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.2af

  • Processor: 1 X Arm Cortex-a9: 800 Mhz
  • Ram: 512 Mb Sdram
  • Flash Memory: 256 Mb
  • Status Indicators: Port Status, Power, Poe

    Expansion / Connectivity:

    interfaces:

  • 24 X 10/100/1000 Base-t Rj-45 Poe - 370 W
  • 4 X 1/10gbit Lan Sfp+

    Power:

  • Power Device: Internal Power Supply
  • Voltage Required: Ac 120/230 V (50/60 Hz)
  • Power Consumption Operational: 439 Watt
