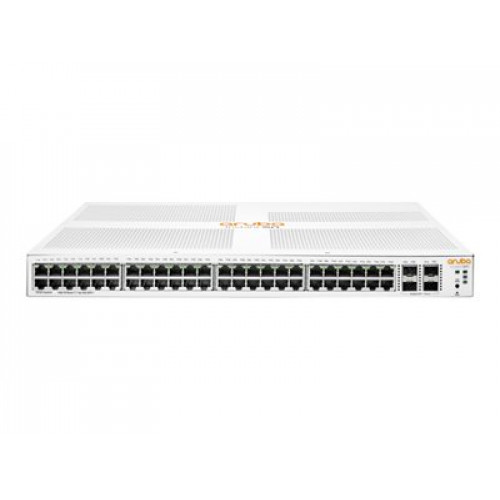

HPE Aruba Instant On 1930 48g 4sfp/sfp+ Switch Switch 48 Ports Managed Rack-mountable JL685A

HPE Aruba Instant On 1930 48g 4sfp/sfp+ Switch Switch 48 Ports Managed Rack-mountable JL685A
Brand: HPE
Part Number: JL685A
MSRP: $497.99
Availability: 10 or more
Condition: New
Price: $414.72
Qty:     - OR -   Add to Wish List
Add to Compare

Detail overview

Hpe Jl685a Aruba Instant On 1930 48g 4sfp/sfp+ Switch - Switch - 48 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 48 Ports - L2+ - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 48 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
  • Performance : Throughput: 130.95 Mpps ¦ Switching Capacity: 176 Gbps ¦ Latency (1 Gbps): 2.2 Μs ¦ Latency (10 Gbps): 1.2 Μs
  • Capacity : Routing Table Entries (static): 32
  • Mac Address Table Size : 16k Entries
  • Jumbo Frame Support : 9216 Bytes
  • Routing Protocol : Igmpv2, Igmp, Static Ipv4 Routing, Mstp, Rstp, Stp
  • Remote Management Protocol : Snmp, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Scp, Dhcp, Ipv4, Ipv6
  • Encryption Algorithm : Ssl
  • Authentication Method : Radius
  • Features : Flow Control, Dhcp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Port Mirroring, Manageable, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Rapid Spanning Tree Protocol (rstp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Trusted Platform Module (tpm), Ipv4 Support, Lacp Support, Lldp Support, Link Aggregation Control Protocol (lacp), Class Of Service (cos), Snmp Support, 1.5mb Packet Buffer, Bridge Protocol Data Unit (bpdu), Lldp-med, Energy-efficient Ethernet (eee)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3az
  • Processor : 1 X Arm Cortex-a9: 800 Mhz
  • Ram : 512 Mb
  • Flash Memory : 256 Mb

    Expansion / Connectivity :
    Interfaces :
  • 48 X 1000base-t Rj-45
  • 4 X Gigabit / 10gbit Lan Sfp+

    Power :
  • Power Device : Internal Power Supply
  • Voltage Required : Ac 120/230 V (50/60 Hz)
