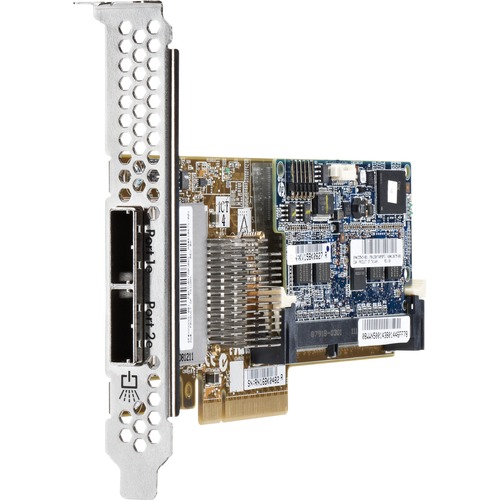

HPE Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller - 6Gb/s SAS - PCI Express 3.0 x8 - Low-profile - Plug-in Card - RAID Supported - 0, 1, 1+0, 5, 50, 6, 60 RAID Level - 2 Total SAS Port(s) - 2 SAS Port(s) External Flash Backed Cache 631674-B21

HPE Smart Array P421/2GB FBWC 6Gb 2-ports Ext SAS Controller - 6Gb/s SAS - PCI Express 3.0 x8 - Low-profile - Plug-in Card - RAID Supported - 0, 1, 1+0, 5, 50, 6, 60 RAID Level - 2 Total SAS Port(s) - 2 SAS Port(s) External Flash Backed Cache

The HPE Smart Array P421 Controller is a low profile, 6 Gb/s, PCIe 3.0, Serial Attached SCSI (SAS) RAID controller that provides enterprise class, storage performance, maximum external scalability, and data protection for select HPE ProLiant Gen8 rack and tower servers. It features eight external SAS ports and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache, global online spare, and pre-failure warning. Data Compatibility among all models of Smart Array controllers allows simple and easy migration at any time when needs for higher performance, capacity, and availability increase. Even new generations of Smart Array controllers can understand the data format of previous generations of Smart Array controllers.

Technical Specifications:
Host Interface: PCI Express 3.0 x8
Controller Type: 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 1+0, 5, 50, 6, 60
Number of Logical Drive Supported: 64
Data Backup Type: Flash Backed Cache
Maximum Data Transfer Rate: 600
Total Number of SAS Ports: 2
Number of SAS Ports (External): 2
Height: 9.5"
Width: 2.2"
Depth: 7.5"
Form Factor: Plug-in Card
Card Height: Low-profile
Weight (Approximate): 15.87 oz
Compatibility:

HP ProLiant Server Series:

DL360, DL380, ML350, SL200s
