Detail overview

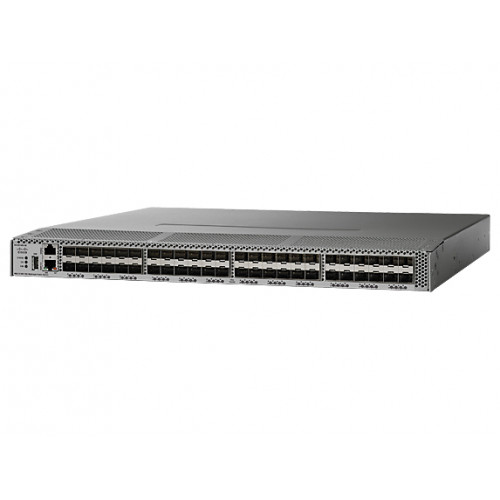

Hpe K2q17a Storefabric Sn6010c - Switch - 48 Ports - Managed - Rack-mountable :
Key Features :
Device Type : Switch - 48 Ports - Managed
Enclosure Type : Rack-mountable 1u
Subtype : Fibre Channel
Ports : 48 X 16gb Fibre Channel Sfp+
Performance : Aggregate Bandwidth: 768 Gbps
Fibre Channel : Fc-al, Fc-al-2, Fc-bb, Fc-da, Fc-fla, Fc-fs, Fc-gs, Fc-gs-3, Fc-gs-4, Fc-mi, Fc-ph, Fc-ph-2, Fc-ph-3, Fc-plda, Fc-sb-2, Fc-sb-3, Fc-sw-2, Fc-sw-3, Fc-tape, Fc-vi, Fc-sp, Fcp-4, Fc-bb-2, Fcp, Fcp-2, Fc-pi-2, Fc-bb-3, Fc-fs-2, Fc-gs-5, Fc-sw-4, Fcp-3, Fc-ls, Fc-mi-2, Fc-pi-4, Fc-fs-3, Fc-gs-6, Fc-pi-3, Fc-sw-5
Remote Management Protocol : Snmp, Snmp 3, Smi-s, Cli
Encryption Algorithm : Aes
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features : Trunking, Syslog Support, Lun Zoning, Quality Of Service (qos), Redundant Hot Swappable Fans, Mac And Ip-based Acls Support
Expansion / Connectivity :
Interfaces :
48 X 16gb Fibre Channel - Sfp+
1 X Management (gigabit Lan)
1 X Management (rs-232)
Power :
Power Device : Internal Power Supply - Hot-plug
Installed Qty : 2 (installed) / 2 (max)
Power Redundancy : Yes
Power Provided : 300 Watt
Voltage Required : Ac 120/230 V (50/60 Hz)
