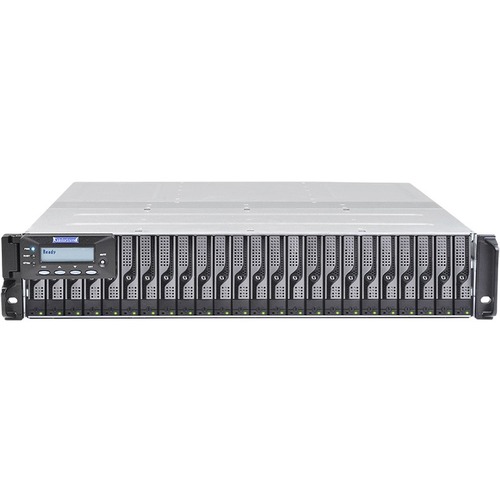

Infortrend EonStor DS 3024UB SAN Storage System - 24 x HDD Supported - 24 x SSD Supported - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60 - 24 x Total Bays - 24 x 2.5"/3.5" Bay - Gigabit Ethernet - Network (RJ-45) - -

Infortrend EonStor DS 3024UB SAN Storage System - 24 x HDD Supported - 24 x SSD Supported - 2 x 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60 - 24 x Total Bays - 24 x 2.5"/3.5" Bay - Gigabit Ethernet - Network (RJ-45) - - iSCSI, SNMP, Telnet, SSH - 2 SAS Port(s) External - 2U - Rack-mountable

EonStor DS 3000High availability enterprise SAN storage solution From 2U 12-bay to 4U 60-bay systems, EonStor DS 3000 ensures enterprises have access to storage with future-proof design. Modular hardware means redundancy and easy upgrades, while fast performance allows for speedy operations. For scalability, a range of expansion enclosures can host up to 4PB capacity. Systems can be totally customized when placing orders, with variety of propocols, such as FC, iSCSI, SAS, InfiniBand and FCoE, for flexible hybrid interfaces.

Technical Specifications:
Number of Hard Drives Supported: 24
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 24
Number of Solid State Drive Installed: No
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 24
Number of 2.5"/3.5" Bays: 24
Number of Controllers: 2
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 6, 10, 30, 50, 60
Number of SAS Ports (External): 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 8
Protocols: iSCSI, SNMP, Telnet, SSH
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 460 W
Redundant Power Supply: Yes
Height: 3.5"
Width: 17.6"
Depth: 19.7"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 43.17 lb
Package Contents:

EonStor DS 3024UB SAN Storage System, 1 x Rackmount Kit
