Intel Desktop Motherboard - ATI Chipset - Socket T LGA-775 - 2 GB DDR2 SDRAM Maximum RAM - DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 2 x Memory Slots - 4 x SATA Interfaces - RoHS Compliance BLKD102GGC2

Intel Desktop Motherboard - ATI Chipset - Socket T LGA-775 - 2 GB DDR2 SDRAM Maximum RAM - DDR2-533/PC2-4200, DDR2-400/PC2-3200 - 2 x Memory Slots - 4 x SATA Interfaces - RoHS Compliance

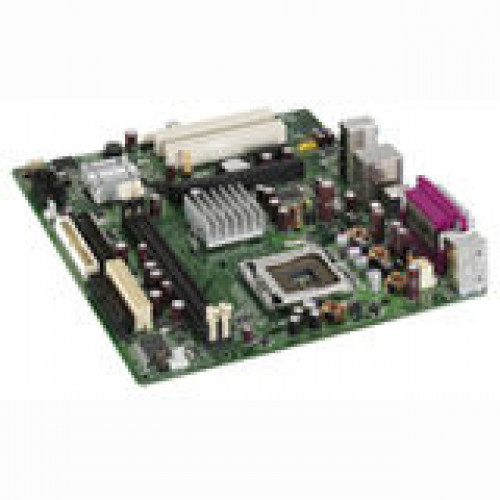

The Intel Desktop Board D102GGC2 Essential Series is a value board that provides stable support for the Intel Pentium D processor, Intel Pentium 4 Processor and the Intel Celeron D Processor in the LGA775 package in a MicroATX form factor with flexible integrated graphics.

Technical Specifications:
Chipset Manufacturer: ATI
Chipset Model: Radeon Xpress 200
Total Processor Supported: 1
Processor Socket: Socket T LGA-775
Processor Supported: Pentium D, Celeron D, Pentium 4
Front Side Bus: 800 MHz, 533 MHz
Number of Memory Slots: 2
Maximum Memory Supported: 2 GB
Memory Standard: DDR2-533/PC2-4200, DDR2-400/PC2-3200
Memory Technology: DDR2 SDRAM
Memory Speed Supported: 533 MHz, 400 MHz
Controller Type: Floppy Controller, Serial ATA/150, Ultra ATA/100 (ATA-6)
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Radeon Xpress 200
Sound Controller Manufacturer: Realtek
Sound Controller Model: Radeon Xpress 200
Ethernet: Yes
Number of Total Expansion Slots: 4
Number of PCI Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Parallel Port: Yes
Serial Port: Yes
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
Network (RJ-45): Yes
PS/2 Port: Yes
Number of PS/2 Ports: 2
Number of IDE Interfaces: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 2
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Form Factor: Micro ATX
Width: 9.6"
Depth: 8.6"
Additional Information:

System Bios:

Intel BIOS, Support for SMBIOS, Intel Rapid BIOS Boot, Intel Express BIOS Update
Environmentally Friendly: Yes
Environmental Certification: RoHS
