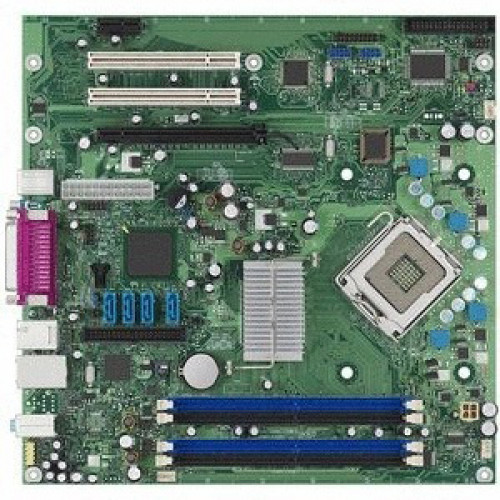

INTEL Mbtx Motherboard Socket 775 800mhz Fsb 4gb (max) Ddr2 Seram Support Avl D945PAW

Detail overview

product Details:

product Type : Desktop Board

mfg Number : D945paw


description:
intel - D945pawlk Microbtx Motherboard, Socket 775, 800mhz Fsb, 4gb (max) Ddr2 Sdram Support, Avl.

key Features:

form Factor : Microbtx, 10.5 X 10.4 Inches

processor Class:
- Intel Pentium D Processor In An Lga775 Socket With An 800 Mhz System Bus
- Intel Pentium 4 Processor In An Lga775 Socket With An 800 Mhz System Bus
- Intel Celeron D Processor In An Lga775 Socket With A 533 Mhz System Bus

number Of Processors Supported : 1

chipset Used : Intel 945p

front Side Bus Supported : 800/533 Mhz

memory Types Supported : 4 Gb (max) Ddr2 667 Mhz, Ddr2 533 Mhz And Ddr2 400 Mhz Dimms

number Of Memory Slots : 4 (240-pin)

video Integrated : One Pci Express X16 Bus Add-in Card Connector

audio Integrated : 6-channel (5.1) Audio Subsystem With Three Analog Audio Outputs Using The Sigmatel 9220 Audio Codec

network Controller On-board : Gigabit (10/100/1000 Mbits/sec) Lan Subsystem Using The Intel 82573v/82574v Gigabit Ethernet Controller

onboard Device:
- 1 Serial And 1 Parallel Port
- 1 Back, 2 Front Ieee-1394a Ports

ide Mode Supported:
- 4 Serial Ata Interfaces
- 1 Parallel Ata Ide Interface With Udma 33, Ata-66/100 Support

scsi Controller On-board : None

agp Slot : None

slots Available:
- 2 Pci Conventional
- 1 Pci Express X16, 1 Pci Express X16

number Of Usb Ports : 4 Back, 4 Front Usb 2.0

other Features:
- Hyper-threading Technology Support
- Intel Precision Cooling Technology
- Instantly Available Pc
- Intel Express Bios Update
