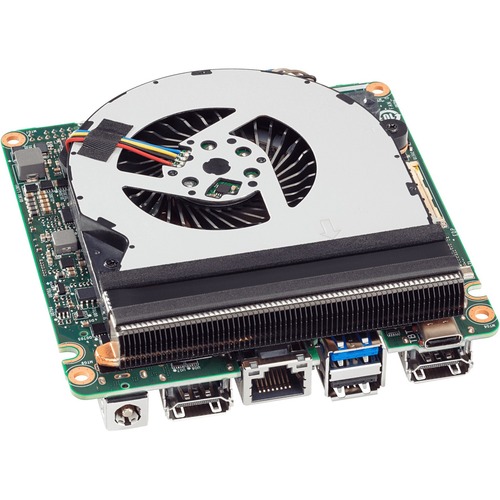

Intel NUC 8 Pro NUC8V5PNB Desktop Motherboard - Chipset - Socket BGA-1528 - Optane Memory Ready - Ultra Compact - Core i5 i5-8365U - 64 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI BKNUC8V5PNB

Intel NUC 8 Pro NUC8V5PNB Desktop Motherboard - Intel Chipset - Socket BGA-1528 - Intel Optane Memory Ready - Ultra Compact - Intel Core i5 i5-8365U - 64 GB DDR4 SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI

Four-by-four inch Intel® NUC boards come with a soldered-on processor. Boards can be purchased independently of the kit, providing a mini PC that''s fully customizable, scalable, and configurable for a wide variety of solutions.

Warning: Cancer - www.P65Warnings.ca.gov.

Technical Specifications:
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1528
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Core i5
Integrated Processor Model: i5-8365U
Integrated Processor Speed: 1.60 GHz
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2400 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA
RAID Supported: Yes
RAID Levels: 0, 1
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: Intel
Graphics Controller Model: UHD Graphics
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x4 Slots: 1
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 1
Number of USB 3.1 Ports: 2
HDMI: Yes
Number of Network (RJ-45) Ports: 1
Number of Thunderbolt 3 Ports: 1
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.1 Ports: 2
Form Factor: Ultra Compact
Width: 4"
Depth: 4"
