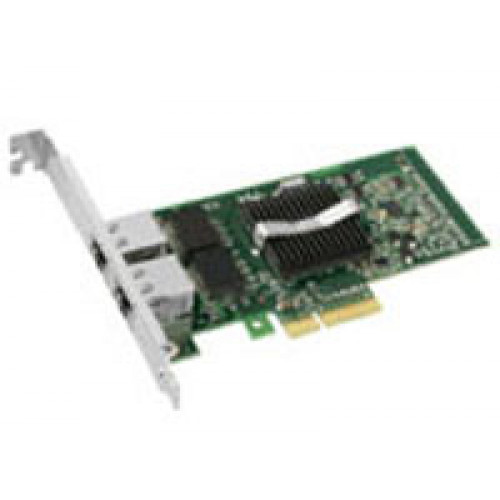

Intel PRO/1000 PT Server Adapter - PCI Express - 10/100/1000Base-T - Full-height, Low-profile - Retail - RoHS Compliance EXPI9400PT

Intel PRO/1000 PT Server Adapter - PCI Express - 10/100/1000Base-T - Full-height, Low-profile - Retail - RoHS Compliance

The Intel PRO/1000 PT Server Adapter represents the fifth generation of Intel network adapters for Gigabit Ethernet, and features 10/100/1000 Mbps self-configuration for compatibility with mixed speed network devices. For easy installation and management, all Intel PRO Network Connections are supported by Intel PRO Intelligent Install and the new Intel PROSet Utility for Microsoft Device Manager. Intel PROSet simplifies adapter installation and gives you point-and-click power to configure and manage all your Intel PRO Network Connections for connectivity you can count on. Take advantage of PCI Express (PCIe) server slots to enhance network performance with the Intel PRO/1000 PT Server Adapter. The dedicated input/output (I/O) bandwidth of PCIe ensures priority performance-without bus sharing-for Gigabit Ethernet connectivity in Category-5 networks.Intel Ethernet - It Just Works!

Technical Specifications:
Host Interface: PCI Express
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Twisted Pair Cable Standard: Category 5e
Network Technology: 10/100/1000Base-T
Card Height: Full-height, Low-profile
Form Factor: Plug-in Card
Height: 4.7"
Width: 5.1"
Thickness: 850 mil
Package Contents: PRO/1000 PT Server Adapter, Informational CD, Bracket
Additional Information: Interrupt moderation: Delivers increased performance while significantly reducing CPU utilization, Plug and play specification support, Integrated media access control (MAC) and physical layer (PHY), Bus speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional, EEPROM-SPI and single EEPROM support, Interrupt levels: INTA

Advanced Software Features:

Test switch configuration, TCP checksum offload transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP), IEEE 802.1p Intel Priority Packet II, TCP segmentation/large send offload, Interrupt moderation
Platform Supported: Sun, PC
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Malaysia
