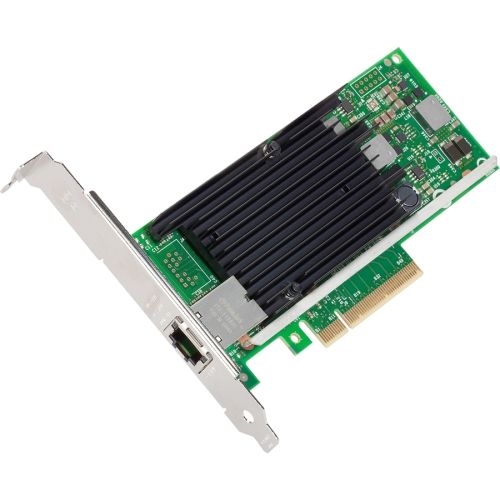

Intel ® Ethernet Converged Network Adapter X540-T1 - PCI Express x8 - 1 Port(s) - 1 x Network (RJ-45) - Twisted Pair - Full-height, Low-profile - Bulk - RoHS Compliance X540T1BLK

Intel® Ethernet Converged Network Adapter X540-T1 - PCI Express x8 - 1 Port(s) - 1 x Network (RJ-45) - Twisted Pair - Full-height, Low-profile - Bulk - RoHS Compliance

10 Gigabit for the Broad MarketThe Intel® Ethernet Converged Network Adapter X540 is the latest innovation in Intel''s leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel''s latest Ethernet silicon, the Intel® Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet (10 GbE) on the latest server platforms.10GBASE-T Simplifies the Transition to 10 GbEThe Intel X540 family of products works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and Cat 6A cabling. Install the Intel X540 adapter into a server and the auto-negotiation between 1 GbE and 10 GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10 GbE.

Technical Specifications:
Host Interface: PCI Express x8
Total Number of Ports: 1
Network (RJ-45): Yes
USB: No
Serial Port: No
Ethernet AUI: No
XJACK: No
PoE (RJ-45) Port: No
Number of Network (RJ-45) Ports: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Network Technology: 10GBase-T
InfiniBand: No
Card Height: Full-height, Low-profile
Form Factor: Plug-in Card
Device Supported: PC
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: RoHS
