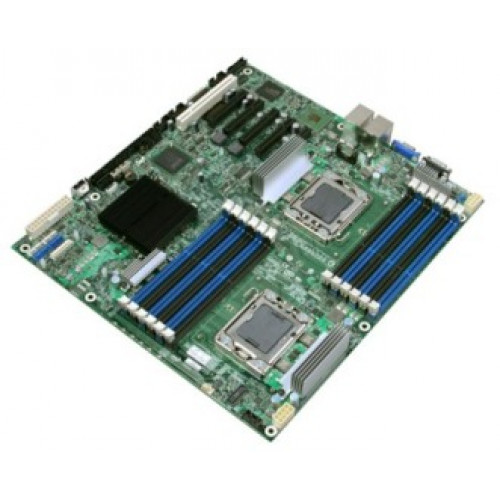

INTEL Ssi Eeb Dual Lga1366 Quad Xeon Server Board, 1333mhz Fsb, 96(gb) Max Ddr3 Sdram Support S5520HC

Detail overview

product Details:

product Type: Server Board

mfg Number: S5520hc


description:
intel - Ssi Eeb Dual Lga1366 Quad Xeon Server Board, 1333mhz Fsb, 96(gb) Max Ddr3 Sdram Support.

key Features:

form Factor: Ssi Eeb (extended Atx), 12 X 13 Inches.


processor Support: Intel Quad-core Xeon 5500 Series

number Processor Supported: 2

system Bus Speed: 1333mhz

chipset: Intel 5520 / Intel Ich10r.

memory:
- Supported Ram Technology:ddr3 Sdram

- Supported Ram Integrity Check:ecc

- Supported Ram (registered Or Buffered):registered

- Ram Installed ( Max ):0 Mb / 96 Gb (max)

- Supported Ram Speed: pc3-10600, Pc3-6400, Pc3-8500

network Adapter:
network Adapter - Intel 82575eb - Ethernet, Fast Ethernet, Gigabit Ethernet

expansion/connectivity:
expansion Slots:
2 Processor - Lga1366 Socket 12 Memory - Dimm 240-pin 1 Pci Express 2.0 X16 - Full-length, Full-height ( X8 Mode ) 3 Pci Express X8 - Full-length, Full-height 1 Pci Express X8 - Full-length, Full-height (x4 Mode ) 1 Pci (5 V )

storage Interfaces:
serial Ata-300 - Connector(s): 2 X 7pin Serial Ata - 6 Device(s) - Raid 0 / Raid 1 / Raid 10

interfaces:
4 X Hi-speed Usb - 4 Pin Usb Type A 2 X Network - Ethernet 10base-t/100base-tx/1000base-t - Rj-45 1 X Display / Video - Vga - 15 Pin Hd D-sub (hd-15) 1 X Serial - Rs-232 - 9 Pin D-sub (db-9)
