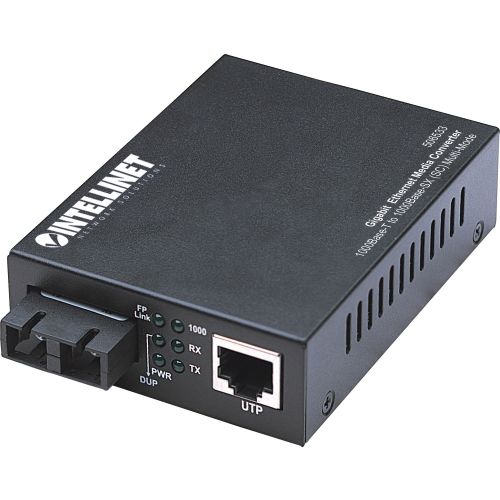

Intellinet Network Solutions Gigabit Ethernet RJ45 to ST, Multi-Mode, 1800 ft. (550 m) Media Converter - 10/100Base-T to 100Base-SX 506533

Intellinet Network Solutions Gigabit Ethernet RJ45 to ST, Multi-Mode, 1800 ft. (550 m) Media Converter - 10/100Base-T to 100Base-SX

The Intellinet Network Solutions Gigabit Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fiber mediums. Expands the Size of an Existing Network Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device. Cabling Flexibility Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media Type Supported: Twisted Pair, Optical Fiber
Fiber Mode Supported: Multi-mode
Fiber Optic Wavelength: 850 nm
Maximum Distance Supported: 1804.46 ft
Fiber Optic Cable Standard: 50/125 µm, 62.5/125 µm, 100/140 µm
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 1000Base-SX
Power Source: Power Adapter
Power Consumption: 2.50 W
Form Factor: Desktop, Wall Mountable, Rack-mountable
Height: 1"
Width: 2.8"
Weight (Approximate): 1.10 lb
Package Contents: Gigabit Ethernet Media Converter, External Power Adapter, User Manual
Country of Origin: China
