IOGEAR HDBaseT HDMI Extender - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Rack-mountable - TAA Compliance GVE330

IOGEAR HDBaseT HDMI Extender - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Rack-mountable - TAA Compliance

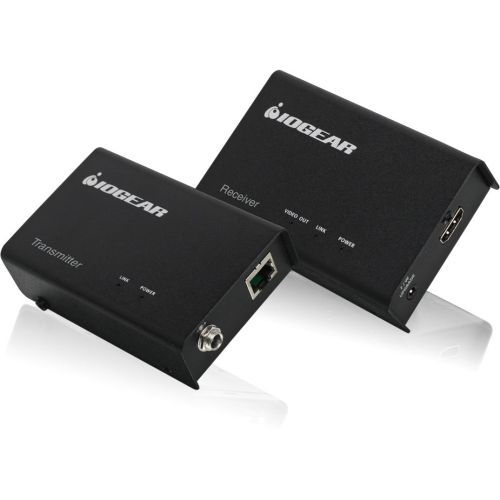

HDMI Extender over Ethernet On average, traditional HDMI cables have distance limitations of transmitting an HDMI signal longer than 25ft. With IOGEAR''s HDBaseT HDMI Extender Kit, HDMI audio and video signals can be transmitted up to 228ft using a single solid Cat6a cable. The HDMI extender kit consists of a local transmitter unit and remote receiver unit connected using a single solid Ethernet cable. This HDMI extender kit provides a low-cost and reliable solution of distributing HDMI over long distances that traditional cables are unable to address. Using existing Cat5e/Cat6/Cat6a infrastructure, HDBaseT technology allows for single cable installation avoiding the hassle of running multiple cables and reducing potential failure points. This plug-n-play solution is compatible with any operating system and requires no additional drivers or software.What is HDBaseT? HDBaseT is a consumer electronic and connectivity standard that''s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables the transmission of uncompressed multimedia content at resolutions up to 4K (UHD). The HDBaseT architecture allows for a full bandwidth of 10.2Gbps data throughput over a single Cat 5e/Cat6/Cat6a cable and supports all High Speed HDMI functions including high-definition video, audio, power, 100BaseT Ethernet, USB, and certain control signals such as CEC, RS-232 or IR.Astonishing Picture Quality at Long Distances With the A/V industry quickly adopting 4K (UHD) as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables that experience signal degradation at 25 feet. Using IOGEAR''s HDBaseT HDMI Extender and a single Cat6a cable, transmit HDMI signals at distances up to 228ft (70m) at 1080p resolution. Be amazed at how 4K UHD (3840x2160) picture quality, four times the resolution of high-definition 1080p, can be maintained even at 130ft (40m) away from your video source using Cat6a cable. This HDMI extender kit can make any video source look great, while future proofing your setup for 4K implementation.

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 229.66 ft
Graphics Modes: 4K
Maximum Video Resolution: 3840 x 2160
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6a
Transmitter Height: 2.62"
Transmitter Width: 4"
Transmitter Depth: 1.19"
Receiver Height: 2.62"
Receiver Width: 4"
Receiver Depth: 1.19"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 8.47 oz
Receiver Weight (Approximate): 8.47 oz
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: Taiwan
