IOGEAR USB PS/2 Combo KVM Switch - 16 x 1 - 16 x SPHD-15 Keyboard/Mouse/Video - 1U - Rack-mountable - RoHS Compliance GCS1716KIT

IOGEAR USB PS/2 Combo KVM Switch - 16 x 1 - 16 x SPHD-15 Keyboard/Mouse/Video - 1U - Rack-mountable - RoHS Compliance

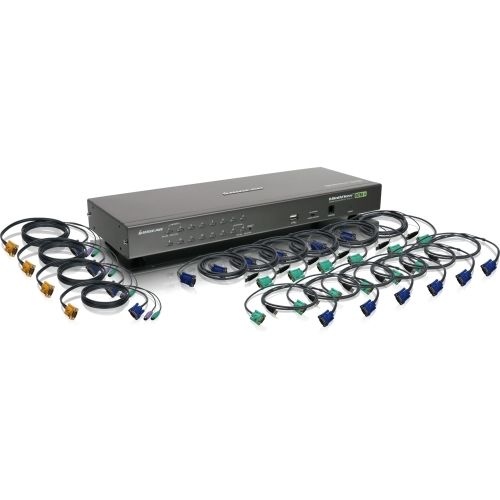

The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Number of Computers Supported: 16
Daisy Chain Supported: Yes
Graphic Mode: QXGA
Maximum Video Resolution: 2048 x 1536
Form Factor: Rack-mountable
Rack Height: 1U
Height: 1.8"
Width: 17"
Depth: 6.3"
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
