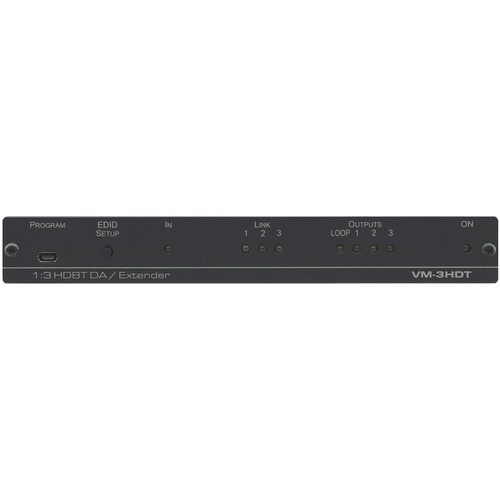

Kramer 1:3+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA - 1 Input Device - 3 Output Device - 229.66 ft Range - 3 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable VM-3HDT

Kramer 1:3+1 4K60 4:2:0 HDMI to Long-Reach HDBaseT DA - 1 Input Device - 3 Output Device - 229.66 ft Range - 3 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - Serial Port - 4K - 4096 x 2160 - Twisted Pair - Rack-mountable

VM-3HDT is a high-quality, long-reach 1:3 HDBaseT extender distributor that takes one HDMI input, with IR and RS-232 control signals, converts it to an HDBaseT extension line signal and distributes it to 3 HDBaseT outputs that connect to compatible HDBaseT receivers such as TP-580R. VM-3HDT distributes signals with resolutions of up to 4K@60Hz (4:2:0), and includes an HDMI LOOP output for connecting to an additional unit in a daisy chain. High Performance Distribution - Distributes one HDMI signal to three long-reach HDBaseT extension outputs with up to 4K video resolution, and additional HDMI LOOP output for connecting a local monitor or an additional unit in a daisy chain. Extension-line Distribution - Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions. Standard Compatibility - Connects to any HDBaseT compliant extension product on the market. HDMI Signal Transmission - HDMI 2.0 and HDCP 1.4 compliant signal, supporting Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC (OUT 1 only) signals are passed through from the source to the display. I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems. Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances. User-Friendly Operation - Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting. Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting. Applications Distribution of native extended AV signals in large rooms Presentation and multimedia rich applications in large boardrooms and meeting rooms Applicable for corporate, education, hospitality, government market segments
