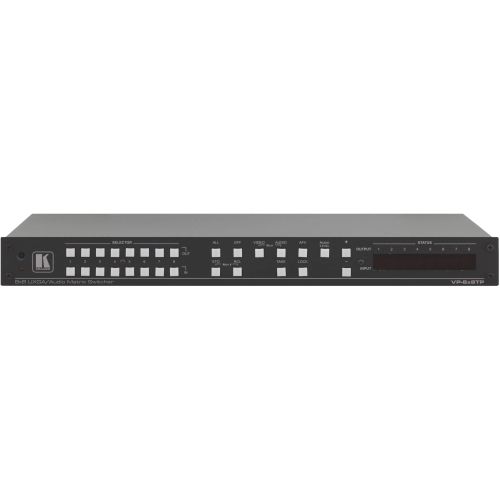

Kramer 8x8 Computer Graphics Video & Stereo Audio over Twisted Pair Matrix Switcher - 1920 x 1080 - Full HD - Twisted Pair - 8 x 8 VP-8X8TP

The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs. A compatible twisted pair receiver converts each output signal back to the original input formats. High Resolution - Up to UXGA/1080p. HDTV Compatible. Active Input Indication™ Reporting - Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input. Delayed Switching™ - Up to a 3.5s (user selectable) delay for clean switching. Kr-isp® Advanced Sync Processing - Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr-isp® advanced sync processing can be enabled or disabled. Power Connect™ Feature - A single connection to the transmitter (only) powers both units when the devices are within 150ft (50m) of each other. Configurable EDID - For each input, via RS-232. Take Button - Executes multiple switches all at once. Memory Locations - Stores multiple switches as presets to be recalled and executed when needed. Audio Breakaway Switching. System Range - Over 100m (330ft) transmission range between the switcher and the TP receiver. Audio Level Controls - For adjusting the signal level of each input. Front Panel Lockout. Flexible Control Options - Front panel, RS-232 and RS-485 (using Kramer Protocols 2000 and 3000), IR remote and optional extension cable, Ethernet with built in Web server. Worldwide Power Supply - 100-240V AC. Standard 19" Rack Mount Size - 1U. Rack "ears" included.
