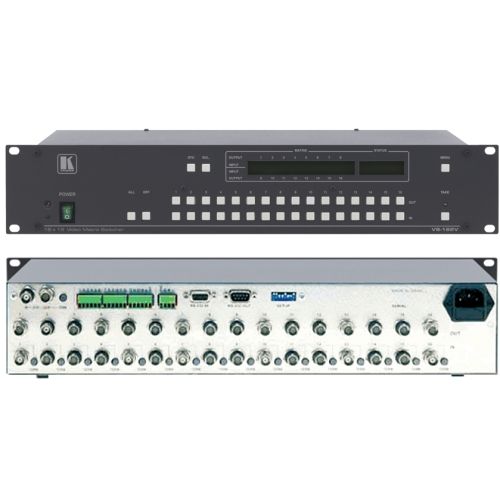

Kramer VS-162V Video Switch - 16 x 16Composite Video In - Composite Video Out VS-162V

Kramer VS-162V Video Switch - 16 x 16Composite Video In - Composite Video Out

The VS-162V is a high-performance matrix switcher for composite video signals. It can also be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS switcher. Bandwidth - 90MHz (-3dB) fully loaded. Multi-Mode Operation - Configure as either a 16x16 composite, an 8x8 s-Video (Y/C), a 5x5 component (YUV), or 4x4 RGBS switcher. Looping Inputs and Sync. Selectable Input and Sync Signal Termination. Control - Front panel, RS-232 (K-Router™ Windows®-based Kramer software is included), RS-485, contact closure, & IR remote (included). Take Button - Executes multiple switches all at once. Memory Locations - Stores multiple switches as presets to be recalled and executed when needed. Standard 19" Rack Mount Size - 2U.

Technical Specifications:
Number of Input Devices Supported: 16
Device Supported: Computer
Number of Displays Supported: 16
Composite Video In: Yes
Composite Video Out: Yes
Serial Port: Yes
Form Factor: Rack-mountable
Height: 3.5"
Width: 19"
Depth: 7"
Weight (Approximate): 7.72 lb
Package Contents: VS-162V Video Switch, IR Remote
