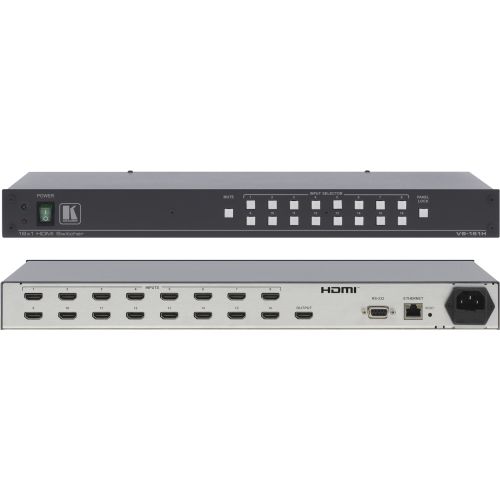

Kramer VS-161H HDMI Switch - UXGA - 1080p16 x 1 - 1 x HDMI Out VS-161H

Kramer VS-161H HDMI Switch - UXGA - 1080p16 x 1 - 1 x HDMI Out

The VS-161H is a high-performance switcher for HDMI signals. It reclocks and equalizes the signal and switches one of the 16 inputs to a single HDMI output. Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel). HDCP Compliant. HDTV Compatible. I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems. HDMI Support - With Lip Sync, CEC. Dual Mode - PC and DVD Modes selectable by input. Flexible Control Options - Front panel, RS-232 (K-Router™ Windows®-based software is included), Ethernet & IR remote (included). Video Disconnect. Front Panel Lockout. Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances. Worldwide Power Supply - 100-240V AC. Standard 19" Rack Mount Size - 1U. Rack "ears" included. Applications: Ideal for conference room presentations and advertising applications, as well as for rental and staging.

Technical Specifications:
Number of Input Devices Supported: 16
Device Supported: Computer
Number of Displays Supported: 1
Graphics Modes: UXGA
Scan Format: 1080p
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Connectivity (RJ-45): Yes
Number of Connectivity (RJ-45) Ports: 1
Number of HDMI Inputs: 16
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Form Factor: Rack-mountable
Height: 1"
Width: 19"
Depth: 7"
Weight (Approximate): 5.50 lb
Package Contents: VS-161H HDMI Switch, Rack Ears, IR Remote
