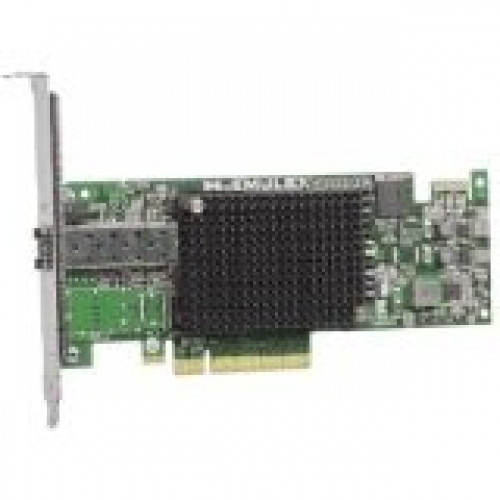

Lenovo Emulex Single Channel 16G Fibre Channel Host Bus Adapter - 1 x LC - PCI Express 2.0 x8 - 16 Gbit/s - 1 x Total Fibre Channel Port(s) - 1 x LC Port(s) - SFP+ - Plug-in Card 81Y1655

Lenovo Emulex Single Channel 16G Fibre Channel Host Bus Adapter - 1 x LC - PCI Express 2.0 x8 - 16 Gbit/s - 1 x Total Fibre Channel Port(s) - 1 x LC Port(s) - SFP+ - Plug-in Card

Exceptional price/performance, advanced management functionality that can shave days off installing and managing adapters, coupled with up to 3x better IOPS performance per watt, make IBM branded 16G Fibre Channel (16GFC) host bus adapters (HBAs) the clear choice for IBM System x servers. IBM 16GFC HBAs were designed to support the largest virtualized, cloud and mission critical database environments. The single-channel IBM 81Y1655 and dual channel IBM 81Y1662 feature the Emulex bullet-proof driver-stack, backward compatibility to 4 and 8G Fibre Channel HBAs and rock-solid reliability with a heritage that spans back to the first generation of Fibre Channel adapters to today''s 16GFC adapters. Emulex is trusted by data centers the world-over, with more than 11 million HBA ports shipped and installed to date.

Technical Specifications:
Total Number of Fibre Channel Ports: 1
Number of LC Ports: 1
Host Interface: PCI Express 2.0 x8
Fiber Channel Port Type: N_Port
Fibre Channel Class Supported: Class 2, Class 3
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Data Transfer Rate: 16 Gbit/s
Expansion Slot Type: SFP+
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.7"
Width: 6.6"
Thickness: 1"
Weight (Approximate): 4 oz
Certifications & Standards: FCC Part 15, Subpart B, Class A (U.S.), ICES-003 Class A (Canada), VCCI Class A (Japan), C-Tick (Australia), AS/NZS CISPR22:2006 Class A, CISPR 22:2005+A1 (International), KCC (formally MIC), Class A with latest RRL notices (Korea), BSMI Class A (Taiwan), UL 60950-1:2001 (cURus - U.S.), CSA 22.2 No 60950-1-03 (cURus - Canada), TUV Bauart certified to EN60950-1:2001, CB Report and Certificate to IEC 60950-1:2001 (International), Dimethyl Fumarate (DMF) restrictions in packaging, ref. EU Decision 2010/251/EC: EU RoHS Compliant (Directive 2002/95/EC)

CE Mark (EU), consisting of:

EN55022:2006 +A1, Class A, EN55024:1998+A1+A2
Environmentally Friendly: Yes
Environmental Certification: China RoHS, EU RoHS
