Lenovo ThinkSystem DE4000F FC All Flash Array SFF - 24 x SSD Supported - 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - - SSH, SMI-S, SNMP, LDAP, SSL, FCP - 4 SAS Port(s) External - 2U

Lenovo ThinkSystem DE4000F FC All Flash Array SFF - 24 x SSD Supported - 12Gb/s SAS Controller - RAID Supported 0, 1, 3, 5, 6, 10 - 24 x Total Bays - 24 x 2.5" Bay - Gigabit Ethernet - - SSH, SMI-S, SNMP, LDAP, SSL, FCP - 4 SAS Port(s) External - 2U - Rack-mountable - TAA Compliance

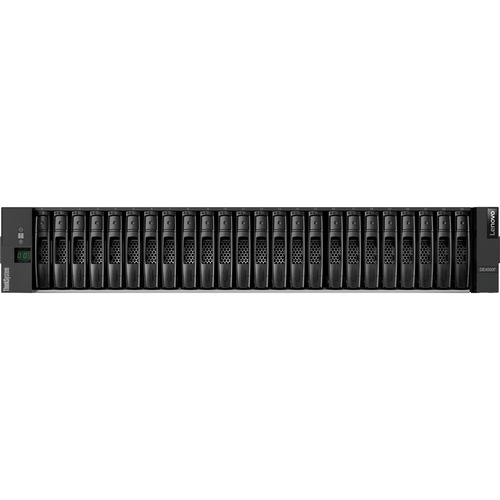

Lenovo ThinkSystem DE4000F is a scalable, all flash entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000F is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, and other storage I/O-intensive applications. ThinkSystem DE4000F models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections. The ThinkSystem DE4000F Storage Array scales up to 192 solid-state drives (SSDs) with the attachment of Lenovo ThinkSystem DE240S 2U24 SFF Expansion Enclosures.

Technical Specifications:
Number of Solid State Drive Supported: 24
Number of Solid State Drive Installed: No
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 24
Number of 2.5" Bays: 24
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 6, 10
Number of SAS Ports (External): 4
Fibre Channel: Yes
Protocols: SSH, SMI-S, SNMP, LDAP, SSL, FCP
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 913 W
Redundant Power Supply: Yes
Height: 3.3"
Width: 17.7"
Depth: 21.8"
Form Factor: Rack-mountable
Rack Height: 2U
Package Contents:

ThinkSystem DE4000F FC All Flash Array SFF, Lenovo ThinkSystem Storage Rack Mount Kit 2U24/4U60, Lenovo ThinkSystem Storage USB Cable (USB Type A to Micro-USB) 2 m, Quick Installation Guide, Electronic Publications Flyer, 2 x power Cables

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
