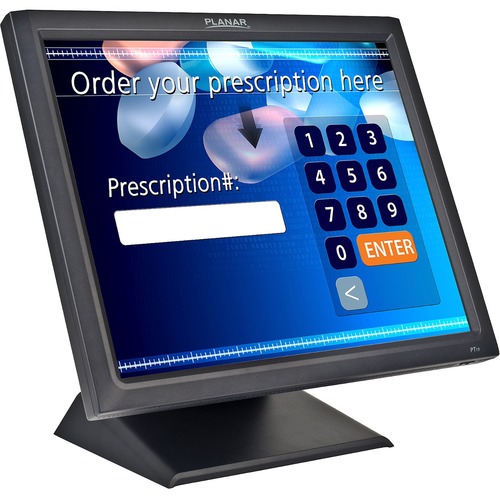

Leyard Planar PT1945R 19" LCD Touchscreen Monitor - 5 ms - 19" Class - 5-wire Resistive - 1 Point(s) - 1280 x 1024 - SXGA - 16.7 Million Colors - 250 Nit - Edge LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - Black - Ro

Planar PT1945R 19" LCD Touchscreen Monitor - 5 ms - 19" Class - 5-wire Resistive - 1 Point(s) - 1280 x 1024 - SXGA - 16.7 Million Colors - 250 Nit - Edge LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - 1 x HDMI In - Black - RoHS - 3 Year - TAA Compliance

The Planar® PT1945R 19" touch screen Point of Sale (POS) monitor is perfect for use in retail, point-of-sale, government, education, healthcare, and kiosk applications. The upgraded, cost-effective monitor now comes with HDMI and DisplayPort input connectivity. Planar PT1945R Easily integrated with a variety of POS, thin client or PC systems, the monitor features 5-wire resistive touch screen with USB touch screen interface, an internal power supply, speakers, and a designed touch enclosure. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions. The Planar PT1945R monitor comes standard with a deskstand capable of -5 to 90° tilt range and is compatible with other mounting options using the 100mm VESA standard hole pattern on the back of the monitor.

Technical Specifications:
Screen Size Class: 19"
Viewable Screen Size: 19"
Screen Mode: SXGA
Response Time: 5 ms
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 160°
Backlight Technology: Edge LED
Features: Anti-glare, On-screen Display (OSD), Security Lock, Cable Lock Slot
Vertical Frequency: 56 Hz to 75 Hz
Stand Adjustments: Tilt
Maximum Resolution: 1280 x 1024
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 Nit
Speakers: Yes
Touchscreen Type: 5-wire Resistive
Number of Simultaneous Touchpoints: 1
HDMI: Yes
USB: Yes
VGA: Yes
DisplayPort: Yes
Number of HDMI Inputs: 1
Number of USB Ports: 1
Number of DisplayPorts: 1
Operating Power Consumption: 25 W
VESA Mount Compatible: Yes
VESA Mount Standard: 100 x 100
Product Color: Black
Height: 14"
Width: 17"
Depth: 2.3"
Height with Stand: 15.40"
Width with Stand: 17"
Depth with Stand: 8.60"
Weight (Approximate): 9.70 lb
Weight with Stand (Approximate): 14.60 lb
Package Contents:

19" Touch Screen Point of Sale Monitor, Power Cord, VGA Cable, Audio Cable, USB Cable (A to B), HDMI Cable, User's Guide, Quick Start Guide, Cable Cover, Screw

Environmentally Friendly: Yes
Environmental Certification: RoHS
