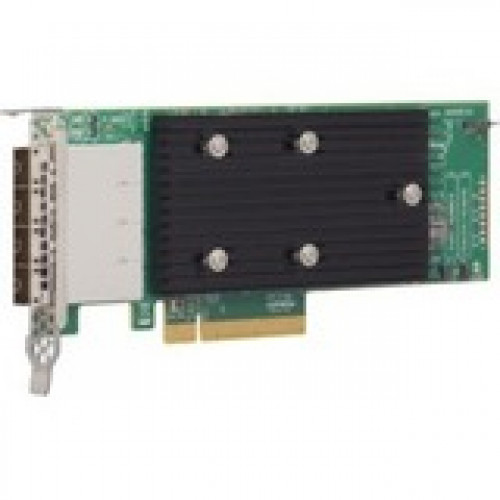

LSI Logic SAS 9305-16e Host Bus Adapter - 12Gb/s SAS - PCI Express 3.0 x8 - 16 SAS Port(s) External - PC, Linux - Plug-in Card 05-25704-00

LSI Logic SAS 9305-16e Host Bus Adapter - 12Gb/s SAS - PCI Express 3.0 x8 - 16 SAS Port(s) External - PC, Linux - Plug-in Card

Designed for large-scale, data-intensive applications, the SAS 9305-16e 12Gb/s SAS HBA is ideal for tiered storage or multiple external storage enclosures. The 9305-16e is a single-chip low-profile adapter providing up to 16 direct external drive connections or full scalability using expanders. With performance of over 1.5 million input-output operations per second (IOPS), this adapter delivers the performance and scalability needed for critical applications. Connects up to 1024 SAS and SATA devices with 16 external 12Gb/s SAS ports Provides maximum connectivity and performance for external JBOD and external RAID enclosures Support critical applications with the bandwidth of PCIe® 3.0 connectivity Achieve more than 1.5 million IOPS for performance-sensitive applications

Technical Specifications:
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
Number of SAS Ports (External): 16
SAS Connector Details: 4 x SFF-8644
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.7"
Width: 6.6"
Package Contents:

SAS 9305-16e Host Bus Adapter, Documentation CD

Platform Supported: PC, Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
