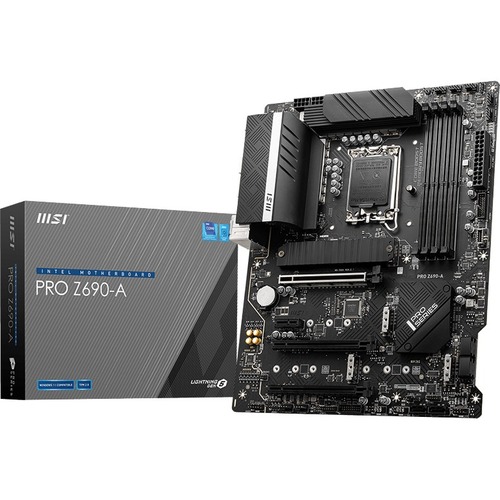

Micro-Star International MSI Z690-A Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory

MSI Z690-A Desktop Motherboard - Intel Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX - Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - HDMI - DisplayPort - 6 x SATA Interfaces

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Z690
Total Processor Supported: 1
Processor Socket: Socket LGA-1700
Processor Generation Supported: 12th Gen
Processor Supported: Pentium Gold, Celeron, Core i5, Core i7, Core i9
Multi GPU Supported: CrossFire
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR5 SDRAM
Memory Speed Supported: 6400 MHz, 5400 MHz, 4000 MHz, 4800 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
2.5Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 3
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 4
Number of USB 3.2 Ports: 1
Number of USB 3.2 Gen 1 Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 1
S/PDIF: Yes
HDMI: Yes
DisplayPort: Yes
Number of Network (RJ-45) Ports: 1
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 4
Total Number of Onboard USB Ports: 9
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 5
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents:

PRO Z690-A Desktop Motherboard, Quick Installation Guide, M.2 Screw / Standoff Sets, 2 x M.2 Clips, 2 x SATA Cables, Product Registration Card, I/O Shield, Driver DVD

Brand Compatibility: Intel
Country of Origin: China
