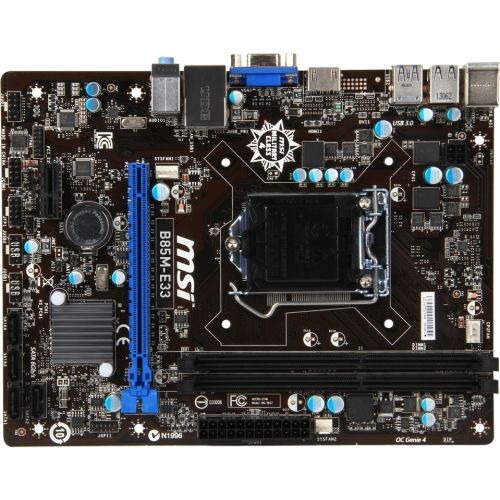

Micro-Star International MSI B85M-E33 Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.33 GHz Memory Speed Supported - 2 x Memory Slots - Serial ATA/600, Serial ATA/300 Contro

MSI B85M-E33 Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.33 GHz Memory Speed Supported - 2 x Memory Slots - Serial ATA/600, Serial ATA/300 Controller - CPU Dependent Video - 2 x USB 3.0 Port - HDMI - Intel - 7.1 Audio Channels - Gigabit Ethernet - 1 x PCI Express x1 Slots - 1 x PCI Express x16 Slots - 6 x USB Ports - VGA - 4 x SATA Interfaces - China RoHS, WEEE Compliance

Intel® B85 Express Chipset Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket Supports DDR3-1600 Memory USB 3.0 + SATA 6Gb/s Military Class 4: Top Quality & Stability Military Class Essentials: Total Protection for Military Class Motherboards OC Genie 4: Overclock in 1 Second Click BIOS 4: Easily Fine-tune Your System 4K UHD Support: Ultra-high Definition Visual Experience PCI Express Gen 3: World''s 1st PCI Express Gen 3 Motherboard Brand Command Center: Control & Customize Your PC Settings Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds Super RAID: Easily Setup & Configure Intel® Technologies M-Flash: Simply Update & Backup Your BIOS Live Update 5: Easily Update The Latest BIOS & Drivers Intel® Small Business Advantage 2.0: Streamiline PC Maintenance & Security

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: B85 Express
Total Processor Supported: 1
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i7, Core i5, Core i3, Pentium, Celeron, Xeon
64-bit Processing: Yes
Number of Memory Slots: 2
Memory Form Factor: DIMM
Maximum Memory Supported: 32 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz
Controller Type: Serial ATA/600, Serial ATA/300
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Graphics Controller Memory: 1.72 GB
Graphics Memory Technology: DDR3 SDRAM
Graphics Memory Accessibility: Shared
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC887
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
PCI Express Standard: PCI Express 3.0
Total Number of PCI Express Slots: 2
Number of PCI Express x1 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 4
Number of USB 3.0 Ports: 2
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
VGA: Yes
HDMI: Yes
Number of HDMI Outputs: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
PS/2 Port: Yes
Number of PS/2 Ports: 2
Number of SATA Interfaces: 4
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 2
Onboard Serial Header: Yes
Onboard Audio Header: Yes
Power Supply Supported: ATX12V
Form Factor: Micro ATX
Width: 8.9"
Depth: 6.8"
Certifications & Standards: CE, FCC, KC (KOREA CERTIFICATION), BSMI, C-TICK
Environmentally Friendly: Yes
Environmental Certification: WEEE, China RoHS
Country of Origin: China
