Microchip 4 + 1 Outdoor Switch, 60W Per Port, Managed PoE, AC Input - 4 Ports - Manageable - 2 Layer Supported - Modular - 1 SFP Slots - 150 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports PDS-104GO/AC/M-CC

Microchip 4 + 1 Outdoor Switch, 60W Per Port, Managed PoE, AC Input - 4 Ports - Manageable - 2 Layer Supported - Modular - 1 SFP Slots - 150 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports

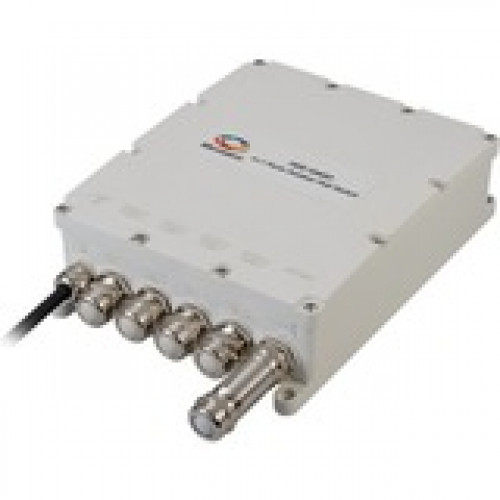

The PDS-104GO is an outdoor PoE switch that enables the connection of four powered devices to a network such as an outdoor WLAN, outdoor IP camera, or outdoor P2P radio. With VLAN and RADIUS support, the PDS-104GO brings improved security and performance. It provides better safety through centralized management of user profiles and authorized system access. By regulating network traffic in each VLAN, the switch offers increased network performance. The switch offers an SFP port for uplink in order to support optical interfaces or electrical interfaces. It is IP66-rated and can be installed in outdoor environments. There is no need to open the unit during installation. Deployment is simple and straightforward. The PDS-104GO delivers PoE power of up to 60W per device. In addition, it enables remote monitoring and control of the devices'' status, including remote reset. The switch extends the reach between the switch and powered devices by an additional 100 meters, to a maximum of 200 meters-a major benefit in many applications. It offers lightning protection to the switch itself and to the indoor network.

Technical Specifications:
Total Number of Network Ports: 4
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details: 4 x Gigabit Ethernet PoE, 1 x Gigabit Ethernet Expansion Slot
Media Type Supported: Optical Fiber, Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T, 1000Base-X
Number of Total Expansion Slots: 1
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Layer Supported: 2
Manageable: Yes
PoE (RJ-45) Port: Yes
PoE Budget: 150 W
Input Voltage: 120 V AC, 230 V AC
Power Source: AC Adapter
Height: 2.8"
Width: 9.4"
Depth: 6.5"
Weight (Approximate): 6.39 lb
Country of Origin: Philippines
