Mobile Mark LTM501 WiFi MIMO Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 2.17 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - GPS, Cellular Network, Wireless Data Network - Black - Surface Mount - SMA, RP-SMA Connector LTM501CCJJCB20

Mobile Mark LTM501 WiFi MIMO Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 2.17 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - GPS, Cellular Network, Wireless Data Network - Black - Surface Mount - SMA, RP-SMA Connector

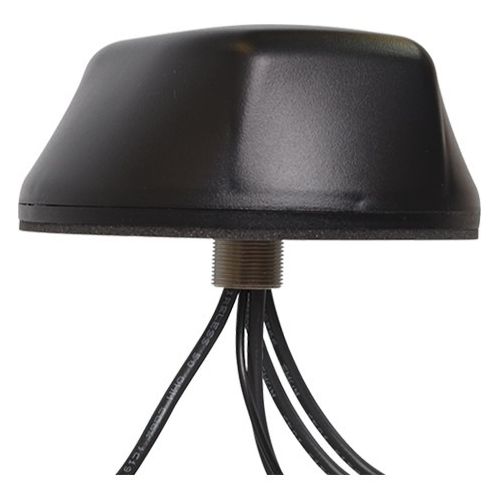

Mobile Mark''s LTM501 Series Multiband Diversity/MIMO antenna contains five separate antennas, all in one compact antenna housing: two LTE 700 MHz & Cellular antennas, two dual-band WiFi antennas, and one GPS antenna.MIMO (multiple-input-multiple-output) modems offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends.With 5-elements, the new LTM antenna is ideal for fleet management systems that combine GPS with both an LTE MIMO modem as well as WiFi MIMO modem.Measuring 5.5" (140mm) in diameter with a low profile of 2.38" (60.4mm), LTM series antennas take up significantly less space than multiple antennas. The radome is available in either black or white. The antennas are available in either surface mount or mag-mount models. The antennas can also be configured for combined GPS & Glonass use.
