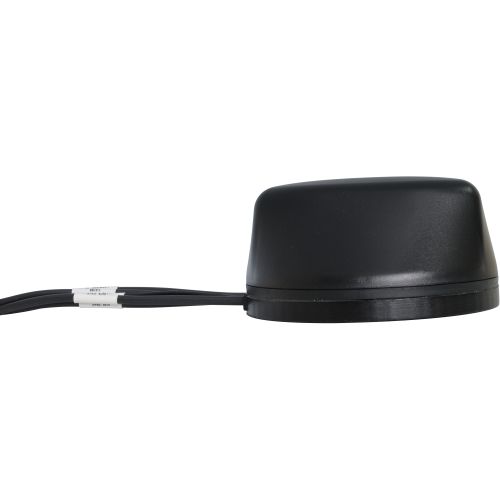

Mobile Mark MLTM502-3C3C3J3J2C-BLK-180 Antenna - 4.90 GHz, 2.40 GHz, 1.71 GHz, 694 MHz to 1.58 GHz, 6 GHz, 2.50 GHz, 3.70 GHz, 960 MHz - 26 dB - Cellular Network, GPS, Wireless Data Network - Black - Magnetic Mount - SMA, RP-SMA Connector MLTM502-3C3C3J3J

Mobile Mark MLTM502-3C3C3J3J2C-BLK-180 Antenna - 4.90 GHz, 2.40 GHz, 1.71 GHz, 694 MHz to 1.58 GHz, 6 GHz, 2.50 GHz, 3.70 GHz, 960 MHz - 26 dB - Cellular Network, GPS, Wireless Data Network - Black - Magnetic Mount - SMA, RP-SMA Connector

Mobile Mark''s LTM502 Series Multiband Diversity/MIMO antennacontains five separate antennas, all in one compact antenna housing:two broadband LTE/Cellular antennas, two dual-band WiFi antennas,and one GPS antenna. The LTM502 differs from the LTM501 inthat the broadband LTE/Cellular element covers all LTE frequenciesworldwide, from 694-3700 MHz.Both WiFi and LTE MIMO (multiple-input-multiple-output) modemsoffer greater speed and capacity than earlier generations of modems.To ensure optimum performance, the systems need multiple antennason both the transmission and receive ends.With 5-elements, the new LTM502 antenna is ideal for fleet managementsystems that combine GPS with both any Global LTE MIMOmodem as well as WiFi MIMO modem.Measuring 5.5" (140mm) in diameter with a low profile of 2.38", theLTM series antennas take up significantly less space than multipleantennas and cut down on installation time and costs by offering asingle mounting hole. The antennas are available in either surfacemountor mag-mount and can also be configured for combined GPS& Glonass use.

Technical Specifications:
Operating Frequency Range: 1575.42 MHz, 4.9 GHz to 6.0 GHz, 2.4 GHz to 2.5 GHz, 1710 MHz to 3700 MHz, 694 MHz to 960 MHz
Antenna Gain: 26 dB
Connector Type: SMA, RP-SMA
Product Color: Black
Height: 2.78"
Diameter: 5.50"
Form Factor: Magnetic Mount
Application/Usage: Cellular Network, GPS, Wireless Data Network
