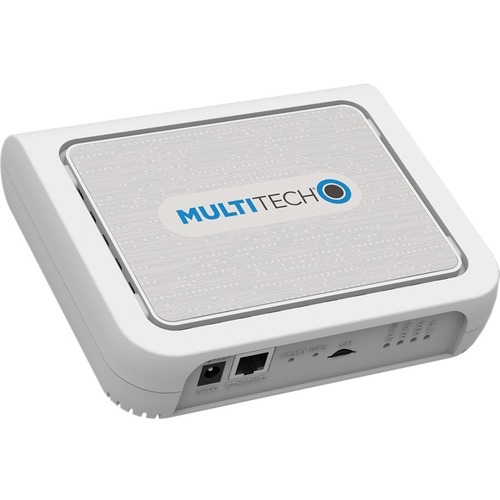

Multi-Tech Conduit MTCAP-LNA3-915-001A Wireless Access Point - 1 x Network (RJ-45) - Fast Ethernet - 1 Pack MTCAP-LNA3-915-001A

Multi-Tech Conduit MTCAP-LNA3-915-001A Wireless Access Point - 1 x Network (RJ-45) - Fast Ethernet - 1 Pack

MultiTech Conduit® AP harnesses the power of the LoRaWAN® protocol to provide in-building penetration and connectivity to thousands of IoT assets. Easy to deploy, the Conduit AP it extends LoRa® connectivity in commercial buildings like hotels, convention centers, offices and retail facilities providing coverage in difficult to reach areas cell tower or rooftop deployments may not penetrate.The Conduit AP offers a development environment for developers and IT professionals alike. mPower™ Edge Intelligence features an easy-to-use graphical interface set-up and includes a built-in LoRa Network Server and Packet Forwarder to connect locally clustered assets on a private LoRaWAN network directly to your choice of IoT data platforms. The mPower extends complex processing to the edge to reduce upstream communication and operational costs. The Conduit AP provides Ethernet or optional 4G-LTE IP backhaul.Programmable embedded software provides enhanced security and enables task execution at the edge for reduced latency and cost optimization.mPower™ Edge Intelligence is a new embedded software offering, building on its popular application enablement platform, to deliver programmability, network flexibility, enhanced security and manageability for scalable Industrial Internet of Things (IIoT) solutions.mPower is the unification and evolution of well-established MultiTech smart router and gateway firmware platforms. In addition to ongoing support of the current feature-sets, gateway customers can enjoy the additional security features currently available on the MultiConnect® rCell 100 Series.mPower simplifies integration with a variety of popular upstream IoT platforms to streamline edge-to-cloud data management and analytics, while also providing the programmability and processing capability to execute critical tasks at the edge of the network to reduce latency; control network and cloud services costs, and ensure core functionality - even in instances when network connectivity may not be available.In response to evolving customer security requirements, mPower incorporates a host of new security features including signed firmware validation, enhanced firewall and VPN settings, secure authentication and more.

Technical Specifications:
Ethernet Technology: Fast Ethernet
Number of Network (RJ-45) Ports: 1
Height: 1.4"
Width: 5.3"
Depth: 6.5"
Weight (Approximate): 3.09 lb
Package Contents:

Conduit AP, Power Supply with NAM Blade, 6 ft. Ethernet Cable, Mounting Bracket, Quick Start Guide

Additional Information:

Mobile Network Operator: Verizon, Performance: 4G-LTE Category 1, Fallback: No Fallback, Frequency Band (MHz): 4G: B2(1900) B4(AWS1700), B13(700), Packet Data (LTE FDD): Up to 10 Mbps downlink, Up to 5 Mbps uplink, Input Voltage: 5 VDC 2.5A input provided by 100-240 VAC 50/60 Hz 0.4A external adaptor, Processor & Memory:
ARM9 processor with 32-Bit ARM & 16-Bit Thumb instruction sets
400 MHz, 16K Data Cache, 256 MB Flash Memory, 16K Instruction Cache, 128X16M DDR RAM

LoRa Frequency Band: 915 MHz, LoRa Channel Plan: US915, Channel Capacity: 8-channels (half-duplex), LoRa Power Output: 24.6 dBm maximum output power before antenna, SIM: 3FF Micro SIM, Antennas (-001A Models) No antenna connections. All antennas are internal to chassis

Country of Origin: United States
