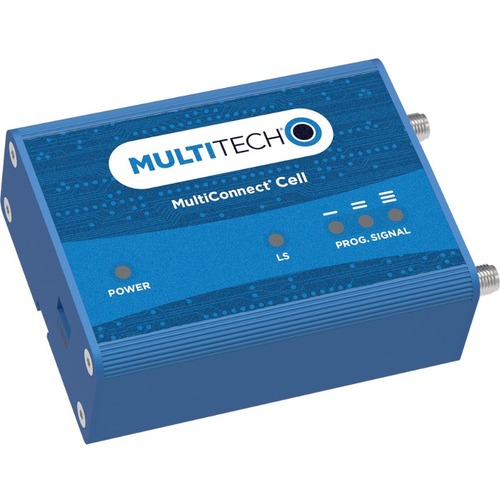

Multi-Tech MultiConnect Cell 100 MTC-MNA1 Radio Modem MTC-MNA1-B01-US

Multi-Tech MultiConnect Cell 100 MTC-MNA1 Radio Modem

The MultiConnect® Cell 100 Series cellular modem is a compact communications platform that provides cellular capabilities for fixed and mobile applications. It is intended for use in settings demanding reliable performance under rugged conditions, low power and long range such as remotely monitoring solar micro-inverters, power generators, tanks, pipelines, meters, pumps and valves in any energy, utility, or industrial application. The MultiConnect Cell 100 Series family has also been successfully deployed by professionals in emergency services, vending, remote patient monitoring, renewable energy systems, End-of-Train system management and process automation. MultiConnect Cell 100 Series modems are fully certified for deployment in multiple geographies around the world, so you can get to market extremely fast. Designed specifically for M2M applications, they provide a long, stable lifecycle and are durable, reliable and easy to deploy.

Technical Specifications:
Host Interface: RS-232
Product Material: Aluminum
Height: 1.2"
Width: 2.5"
Length: 3.2"
Weight (Approximate): 10.40 oz
Package Contents:

MultiConnect Cell 100 MTC-MNA1 Radio Modem, Power Supply with US Power Blade, Cellular Antenna, Mounting Tab, Serial Cable

Additional Information:

LTE Cat M1 Cellular Modem

Frequency Band (MHz)

AT&T: 3GPP Rel. 13 B2 (1900MHz), B4 (AWS1700MHz), B12 (700MHz, Verizon: B4 (AWS1700MHz), B13 (700MHz)

Packet Data: Up to 300 Kbps downlink, up to 375 Kbps uplink

SMS: Point-to-Point Messaging, Mobile-Terminated SMS, Mobile-Originated SMS

Power Requirements

Voltage
RS-232 Models: 7 - 32VDC

Connectors

RF Antenna: External 50 ohm SMA (female connector), SIM: Mini SIM (2FF); 1.8 and 3V, Power:
RS-232 Models: 2.5 mm miniature (screw-on)

Environmental

Operating Temperature: -40° to +185° F (-40° to +85° C), Storage Temperature: -40° to +185° F (-40° to +85° C), Relative Humidity: Relative humidity 15% to 93% noncondensing

Certifications

Network: PTCRB, AT&T, Verizon, Quality:
MIL-STD-810G: High Temp, Low Temp, Cold Dwell, Random Vibration and Sine Vibration, SAE J1455: Random Vibration and Sine Vibration

Certifications & Standards:

Regulatory Compliance:

FCC Class B (US), IC (Canada)

Safety: UL 60950-1 (US)
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
