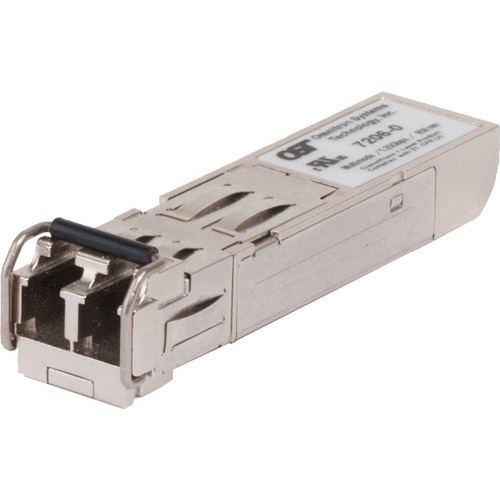

Omnitron Systems 1250Mbps Gigabit Ethernet SFP (mini-GBIC) Module LC Multimode 550m - 1 x 1000BASE-SX Fiber Optical Transceiver - RoHS, WEEE Compliance 7206-0

1250Mbps Gigabit Ethernet SFP (mini-GBIC) Module LC Multimode 550m - 1 x 1000BASE-SX Fiber Optical Transceiver - RoHS, WEEE Compliance

Omnitron''s Small Form Pluggable (SFP) and 10 Gigabit SFP+/XFP optical transceivers are interchangeable, compact media connectors. They enable a single network device to connect to a wide variety of fiber and copper cable types and distances.Pluggable Optical Tranceivers are used to customize iConverter" , FlexPoint" , OmniConverter" and miConverter" products to meet specific networking protocols and media requirements. They support multimode dual fiber, single-mode dual fiber, single-mode single-fiber, Coarse Wave Division Multiplexing (see the CWDM Optical Transceiver Data Sheet) and Unshielded Twisted Pair copper cabling.

Technical Specifications:
Application/Usage: Data Networking, Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network
Media Type Supported: Optical Fiber
Fiber Optic Cable Standard: 50/125 µm, 62.5/125 µm
Fiber Mode Supported: Multi-mode
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-SX
Maximum Distance Supported: 1804.46 ft
Maximum Data Transfer Rate: 1.25
Form Factor: Hot-pluggable, Hot-swappable
Additional Information: 1000Base-SX, Temperature: 0° to +70°, Wavelength: 1310nm, Digital diagnostic capability, Gigabit Ethernet, Fibre Channel,OC-12,OC-12/STM-4,STM-4
Compatibility: Compliant with Multi-Source Agreement (MSA)
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
