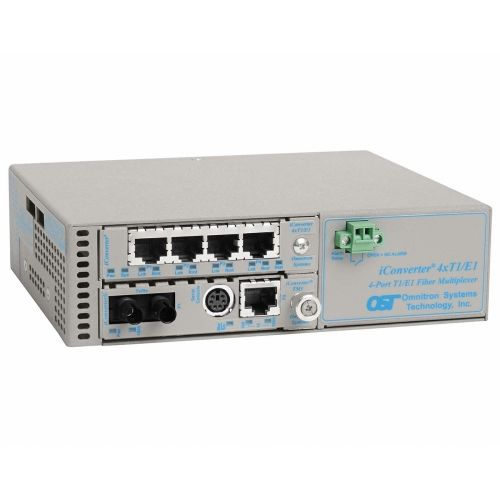

Omnitron Systems iConverter MUX/M Ethernet 4xT1/E1 Fiber Multiplexer ST Multimode 550m - 4 x T1/E1 (RJ-48) 1 x 10/100/1000BASE-T to 1 x ST Multimode, US AC Powered, Lifetime Warranty - RoHS, WEEE Compliance 8820N-0-B

iConverter MUX/M Ethernet 4xT1/E1 Fiber Multiplexer ST Multimode 550m - 4 x T1/E1 (RJ-48) 1 x 10/100/1000BASE-T to 1 x ST Multimode, US AC Powered, Lifetime Warranty - RoHS, WEEE Compliance

The iConverter 4xT1/E1 MUX/M multiplexes up to four T1/E1s and Ethernet onto a fiber optic transport link, and features remotely managed testing and configuration capabilities.The iConverter 4xT1/E1 MUX/M operates in a back-to-back configuration, with one multiplexer at each end of the fiber transport link. The 4xT1/E1 MUX/M can be used in applications where services from legacy TDM equipment require transport across long distances that exceed the reach or capacity of copper. This includes applications such as T1/E1 extension, mobile backhaul and building-to-building PBX connectivity, making it ideal for Enterprise, Telecom and Utility industries.

Technical Specifications:
Management Port: Yes
Number of Network (RJ-45) Ports: 1
Number of RJ-48 Ports: 4
Number of ST Ports: 1
ST Port Type: Duplex
Number of Data Channels: 4
Connectivity Technology: Wired
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology Supported: 10/100/1000Base-T, T1/E1
Maximum Data Transfer Rate: 1 Gbit/s
Input Voltage: 120 V AC
Form Factor: Rack-mountable, Desktop, External, Wall Mountable
Height: 1.9"
Width: 6.7"
Depth: 5.5"
Weight (Approximate): 2.50 lb
Additional Information:

Optical Wave Length:

850 nm

Input Voltage:

100-120VAC/60Hz (0.05A @ 120VAC)
Certifications & Standards: Compliance:UL, CE, FCC Class A
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE
Country of Origin: United States
