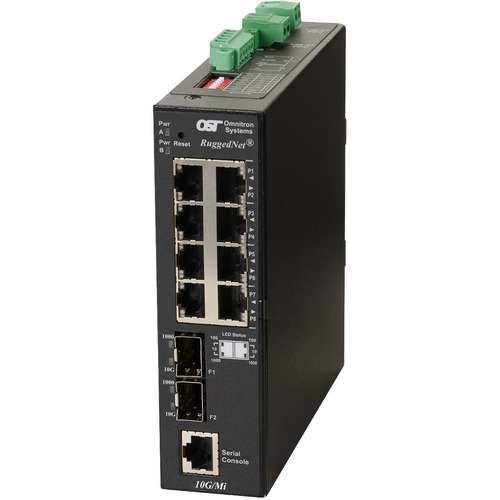

Omnitron Systems RuggedNet 10G/Mi, 2xSFP/SFP+, + 8xRJ-45, 2xDC Powered Industrial Temp - 10 Ports - Manageable - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable -

Omnitron Systems RuggedNet 10G/Mi, 2xSFP/SFP+, + 8xRJ-45, 2xDC Powered Industrial Temp - 10 Ports - Manageable - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty

The RuggedNet 10G/Mi is a ruggedized managed industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 copper user ports. The RuggedNet 10G/Mi enables industrial network distance extension with fiber cabling. The RuggedNet 10G/Mi is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address. All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications. The switches support Dual Device mode that enables the 10G/Mi to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/Mi provides separate and independent data traffic paths between each uplink port and a group of user ports.The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.The RuggedNet switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.The RuggedNet compact industrial Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
