Omnitron Systems RuggedNet 10GPoE+/Mi PoE+, 2xSFP/SFP+, + 4xRJ-45, 2xDC Powered Industrial Temp - 6 Ports - Manageable - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-moun

Omnitron Systems RuggedNet 10GPoE+/Mi PoE+, 2xSFP/SFP+, + 4xRJ-45, 2xDC Powered Industrial Temp - 6 Ports - Manageable - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty

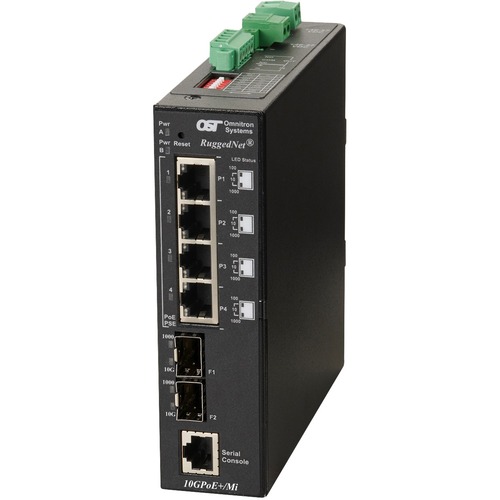

The RuggedNet 10GPoE+/Mi is a ruggedized managed PoE and PoE+ industrial Ethernet switch that features two 1/10G uplink ports and four or 10/100/1000 RJ-45 copper Power Sourcing Power-over-Ethernet user ports. The RuggedNet 10GPoE+/Mi is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address. All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.The switches support redundant uplinks, industrial ring Media Redundancy Protocol (MRP), Spanning Tree protocol and daisy-chain configurations for high availability industrial network applications. The switches support Dual Device mode that enables the 10GPoE+/Mi to operate as two independent and isolated Ethernet switches.The mode of operation can be configured using easily accessible DIP-switches or using Web, Telnet, SSH, SNMPv1/v2c/v3 or Serial Console management interfaces. These management interfaces provide access to filtering and security options, such as, broadcast storm prevention, IGMP, IEEE 802.1x, RADIUS, TACACS+ and Access Control Lists. Email event notification and alarm reporting is provided using Simple Mail Transfer Protocol.The RuggedNet PoE switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.The switches feature a Remote PoE Power Reset function that enables the user to remotely power-cycle and reset each PD. They also feature a configurable Heartbeat Reset function that automatically pings the attached PDs and automatically power cycles and resets the PDs when detecting a heartbeat loss. The Remote Power Reset and the Heartbeat Reset functions increase the networks reliability, up time and save manpower time and expense by automating the recovery of remote PD equipment.The RuggedNet compact industrial PoE Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
