Panduit Terminal Connector - 1500 Pack - 1 x Quick Disconnect - Red - TAA Compliance DPFR18250FIB-KD

Panduit Terminal Connector - 1500 Pack - 1 x Quick Disconnect - Red - TAA Compliance

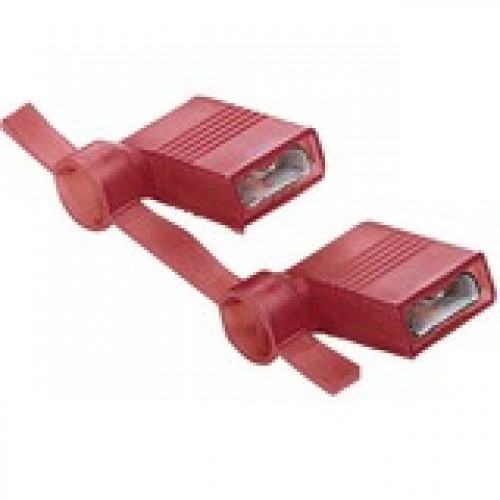

The vibration resistant right angle female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.57" (14.5 mm) long and 0.37" (9.4 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in reels of 1500.

Technical Specifications:
Connector Type: Quick Disconnect
Connector Details: 1 x Quick Disconnect
Contact Plating: Tin
Features: Right-angled Connector, Molded, Flame Retardant
Product Color: Red
Product Material: Brass
Insulation Material: Nylon
Width: 0.4"
Weight (Approximate): 9.60 oz
Environmentally Friendly: Yes
Environmental Certification: RoHS
