Panduit Terminal Connector - 50 Pack - 1 x Quick Disconnect - Blue - TAA Compliance DNFR14-206FIB-L

Panduit Terminal Connector - 50 Pack - 1 x Quick Disconnect - Blue - TAA Compliance

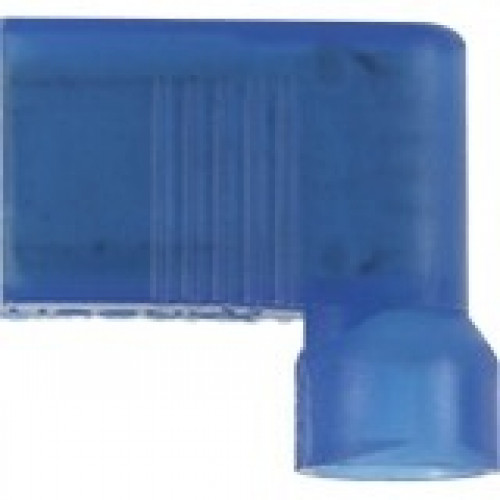

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.

Technical Specifications:
Connector Type: Quick Disconnect
Connector Details: 1 x Quick Disconnect
Contact Plating: Tin
Features: Flame Retardant, Right-angled Connector
Product Color: Blue
Product Material: Brass
Insulation Material: Nylon
Width: 0.4"
Weight (Approximate): 15.20 lb
Environmentally Friendly: Yes
Environmental Certification: RoHS
