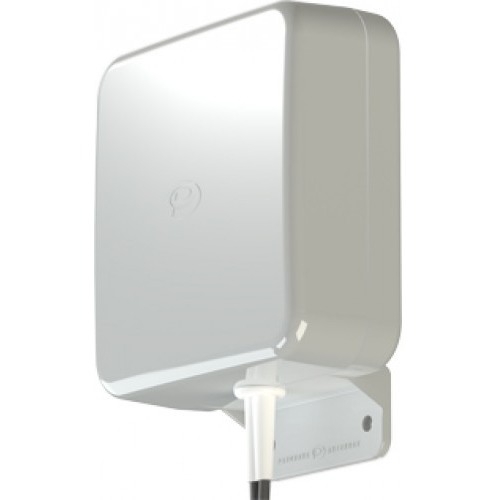

Panorama Antennas Cellular / LTE Gain MiMo Antenna + GPS/GNSS - 698 MHz, 1.71 GHz, 1.56 GHz to 960 MHz, 2.70 GHz, 1.61 GHz - 5 dBi - Cellular Network, GPS - Pure White - Desktop/Wall/Mast - Omni-directional - SMA Connector - TAA Compliance WMMGG-7-27-5SP

Panorama Antennas Cellular / LTE Gain MiMo Antenna + GPS/GNSS - 698 MHz, 1.71 GHz, 1.56 GHz to 960 MHz, 2.70 GHz, 1.61 GHz - 5 dBi - Cellular Network, GPS - Pure White - Desktop/Wall/Mast - Omni-directional - SMA Connector - TAA Compliance

The WMMGG antenna provides an innovative and future proof solution for 2G / 3G and 4G networks. Incorporating two seperately fed ultra wideband and elements in a single housing along with and active GPS/GNSS antenna the WMMG is rquipped to provide client side MiMo and diversity support for the networks of today and tomorrow. With 2dBi gain at 698-960MHz, 5dBi gain at 1710-2170MHz and 4dBi gain at 2.2-2.7GHz the WMMG provides extra gain performance where it is needed most. The GPS/GNSS module offers an integrated 26dB gain LNA. The rugged, weatherproof housing is designed for wall mounting. Wall and mast mount brackets are provided. The cellular/LTE feeds are fitted with 5 metres (16'') of fitted low loss double shielded twin cable and the GPS/GNSS is supplied with 6m (20'') of RG174. This configuration minimises exposed connector joints and simplifies cable management for easy installation.
