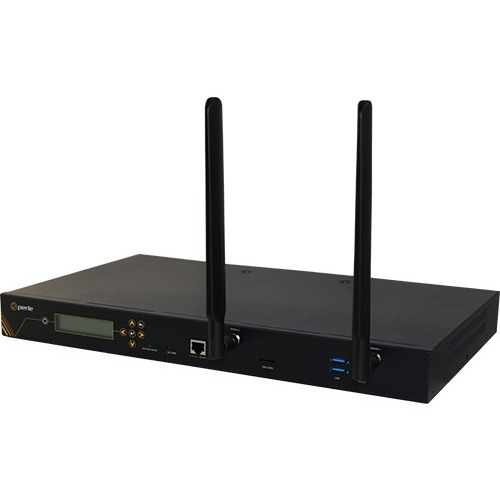

Perle IOLAN SCG18 R-LA Console Server - 1000 MB - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 2 x USB - 16 x Serial Port - 10/100/1000Base-T, 1000Base-X - Gigabit Ethernet - Management Port - Rack-mountable 04032754

Perle IOLAN SCG18 R-LA Console Server - 1000 MB - Twisted Pair, Optical Fiber - 2 Total Expansion Slot(s) - 2 x Network (RJ-45) - 2 x USB - 16 x Serial Port - 10/100/1000Base-T, 1000Base-X - Gigabit Ethernet - Management Port - Rack-mountable

The Perle IOLAN SCG L Console Servers provide data center managers with secure remote console management of any device with an RS232 RJ45 or USB console port. With an expandable modular hardware platform, advanced security features, and built-in redundancy features, your IT professionals and network operations center (NOC) personnel will have everything they needed to easily perform secure remote data center management and out-of-band management of IT assets from anywhere in the world. The unique design also provides users with a flexible, cost-effective solution to transmit data from mission-critical equipment over 4G LTE Cellular networks. Modular Hardware Platform enables Console Management for all IT assets The modular IOLAN SCG L Console Server supports both RS232 RJ45 and USB connectivity to console ports on equipment such as Cisco routers, switches, firewalls, servers (Solaris, Windows, Unix and Linux) PBXs, network storage equipment and security appliances through through a LAN or 4G LTE Cellular network. For decades the highly reliably RS232 RJ45 port has been the standard for Console Admin port access. Now, IT equipment manufacturers like Cisco, Juniper, Dell, HPE, Huawei and others are delivering devices with USB Console Admin Ports. The modular design of the IOLAN SCG L provides support for both types of admin ports in one Console Management solution. The interface modules allow the user to swap, upgrade and scale to any "mix-and-match" combination of 16-port USB 3.0 or RS-232 RJ45 interface module cards. You can purchase the IOLAN SCG L Console Server fully populated or partially populated so that you can swap and add modules as your needs grow or change. The Perle IOLAN SCG is the only industry solution that can support up to 50 high-density USB 3.0 ports that are compatible with all manufacturers'' USB solutions. The RS232 RJ45 ports are software configurable to use straight thru or rolled cables to connect your Cisco equipment. In addition, a DCD pin can be configured for 3rd party devices that need this extra signal. The means the Perle IOLAN SCG supports more serial devices than any other Console Server on the market. Advanced Network Security Features, Authentication and Data Encryption IT administrators are required to ensure network data transmissions, and all access to remote console admin ports on IT equipment is secure. When using IOLAN SCG Console Servers, data management information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Support for authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS, and RSA Security''s SecurID tokens ensures access to equipment and data is limited to authorized users. By using encryption technologies, an IOLAN SCG Console Server protects sensitive and confidential data before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all the major encryption ciphers such as AES, 3DES, RC4, RC2, and CAST128 are fully supported. Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network, providing flexibility and the ability to match the right solution for a particular application.

Technical Specifications:
Device Type: Console Server
Processor Manufacturer: ARM
Processor Speed: 500 MHz
Standard Memory: 1000 MB
Media Type Supported: Twisted Pair, Optical Fiber
Number of Total Expansion Slots: 2
Ethernet Technology: Gigabit Ethernet
Network Standard: 10/100/1000Base-T, 1000Base-X
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Management Port: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 2
Number of Serial Ports: 16
Input Voltage: 120 V AC, 230 V AC
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.1"
Depth: 10.4"
Weight (Approximate): 7.28 lb
Package Contents:

IOLAN SCG18 R-LA Console Server, 2 x Multiband Swivel-mount Dipole Antennae, 1U - 19" Rack, Front and Rear Mounting Hardware

Environmentally Friendly: Yes
Environmental Certification: RoHS, REACH, WEEE
Country of Origin: Canada
