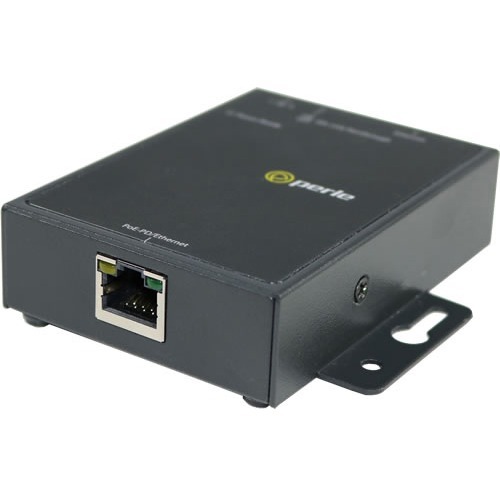

Perle eR-S1110 Ethernet Repeater - 2 x Network (RJ-45) - 10/100/1000Base-T - Wall Mountable, Rail-mountable, Panel Mount 06005324

Perle eR-S1110 Ethernet Repeater - 2 x Network (RJ-45) - 10/100/1000Base-T - Wall Mountable, Rail-mountable, Panel Mount

eR-S1110 Ethernet Repeater and Rate Converter: 2 x 10/100/1000Base-T (RJ45) ports. Auto-sensing and rate converting. Extend existing Ethernet cable length by 100m (300ft). 802.3af Power over Ethernet (PoE) compliant PD. AC power adapter included. The eR-S1110 Ethernet Repeater extends network distances an additional 100m / 328ft over 4-wire twisted pair (CAT5/6/7). You can also perform rate conversion between 10/100/1000 Mbps network links. The eR-S1110 Repeater can also operate as a Powered Device (PD) under IEEE 802.3af supporting end-span and mid-span power sources (PSE). This makes it ideal for organizations that need to deploy equipment in locations that are difficult or too costly to have separate AC power installed such as ceilings, walls and kiosks.

Technical Specifications:
Total Number of Network Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Input Voltage: 120 V DC, 230 V DC
Power Source: AC Adapter
Form Factor: Wall Mountable, Rail-mountable, Panel Mount
Height: 0.9"
Width: 3.5"
Depth: 2.5"
Weight (Approximate): 8.11 oz
Package Contents:

eR-S1110 Ethernet Repeater, AC Power Adapter, Wall/Panel Mount

Certifications & Standards:

Emissions:

FCC 47 Part 15 Class A, EN55032 (CISPR32), EN61000-6-4, EN55024 -CISRP24, EN6100-4-2 (ESD): Contact, EN61000-4-3 (RS), EN610004-4 (EFT), EN61000-4-5 (Surge):, EN61000-4-6 (CS), EN 61000-4-8 (PFMF), EN 61000-4-11, EN61000-4-16

Electrical Safety:

UL/ULC/EN 62368-1 , CE

Environmentally Friendly: Yes
Environmental Certification: REACH, RoHS, WEEE
Country of Origin: Canada
